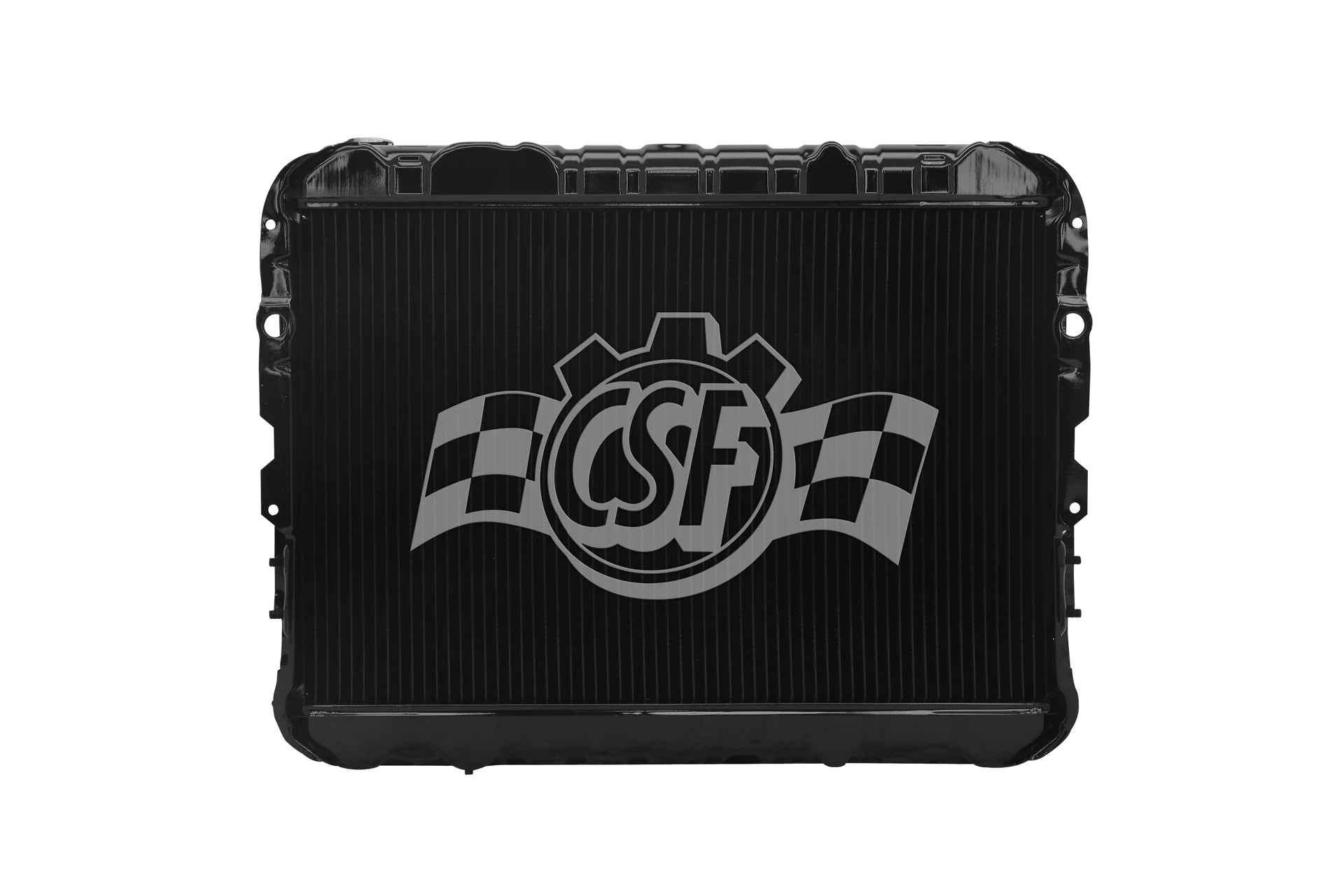

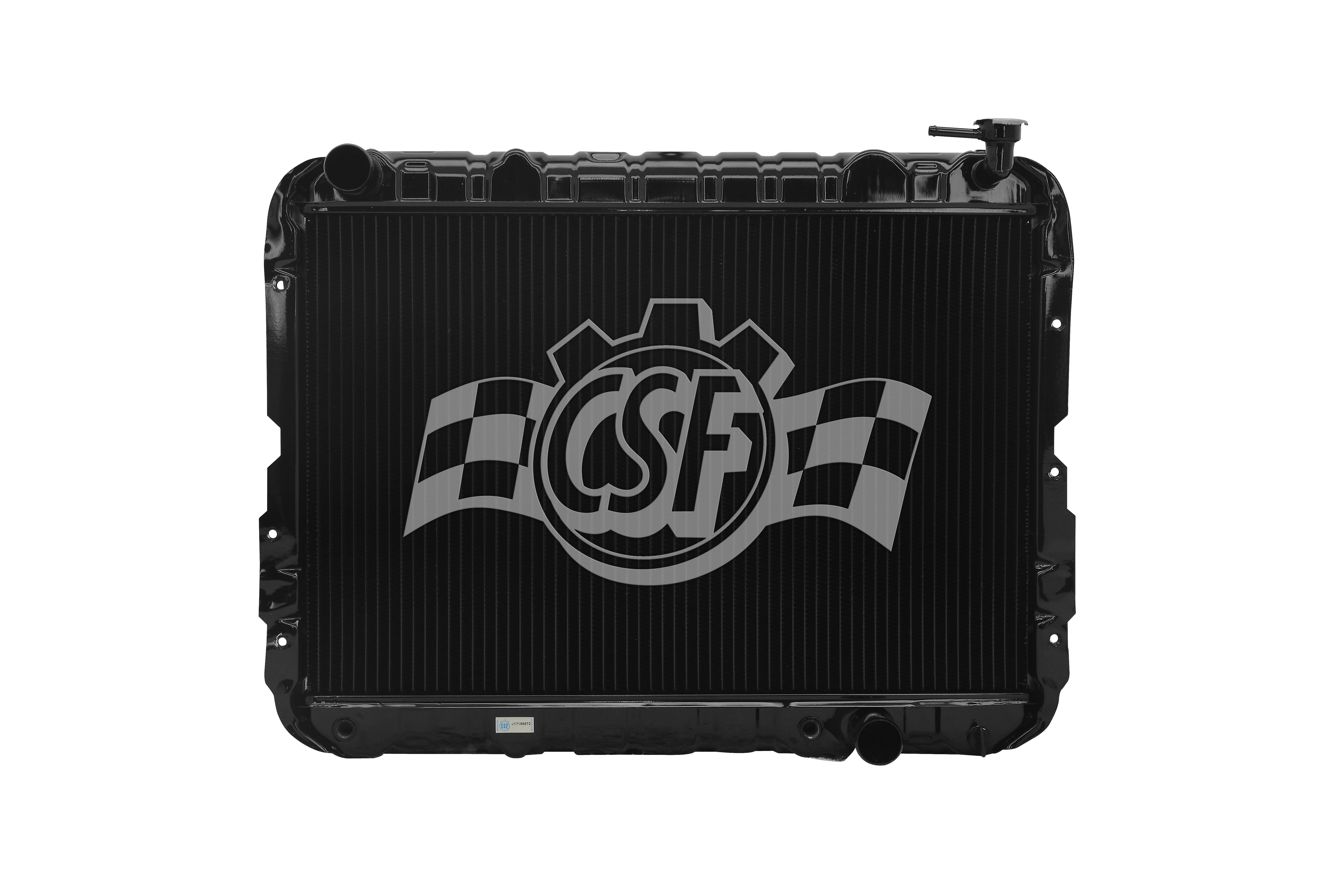

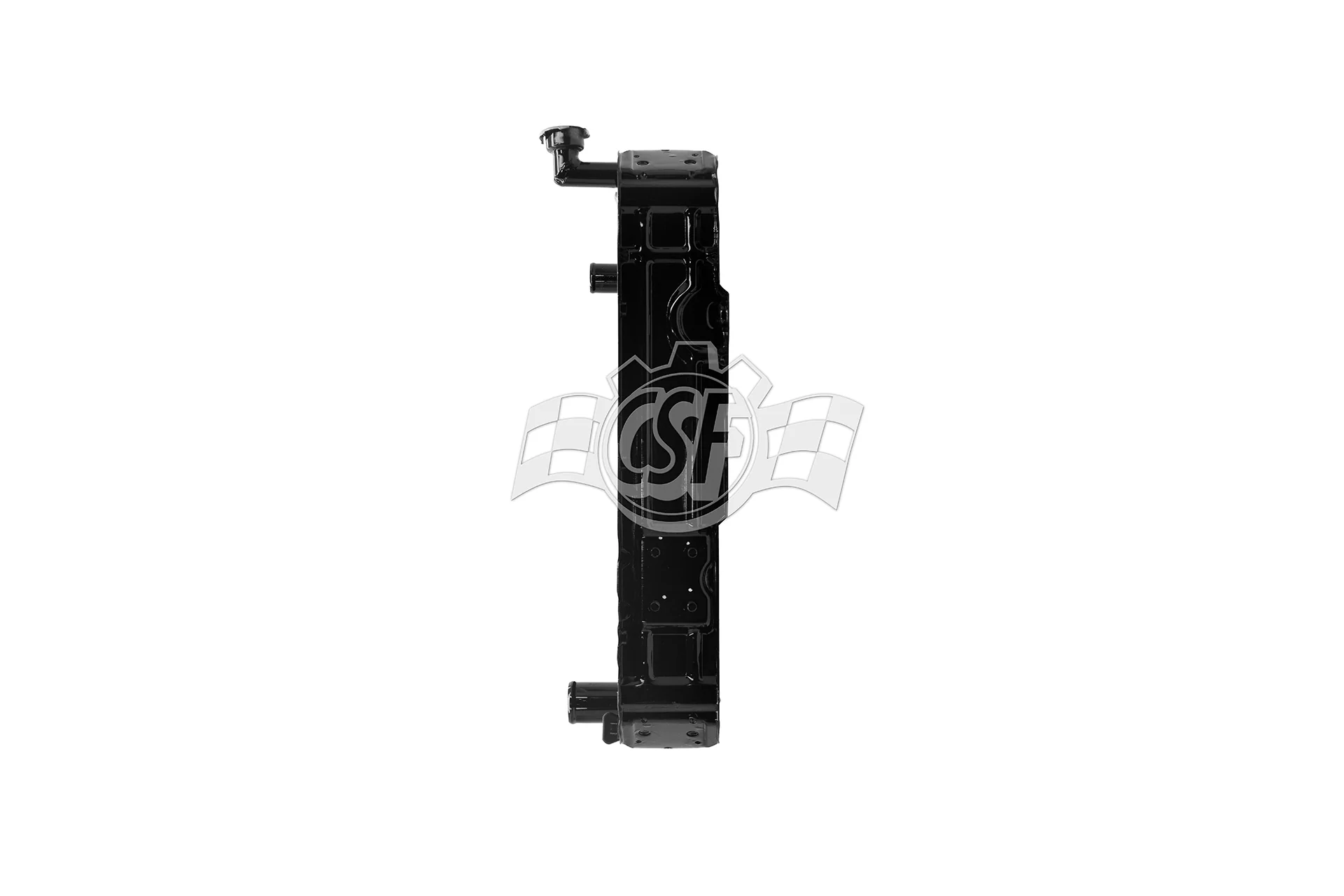

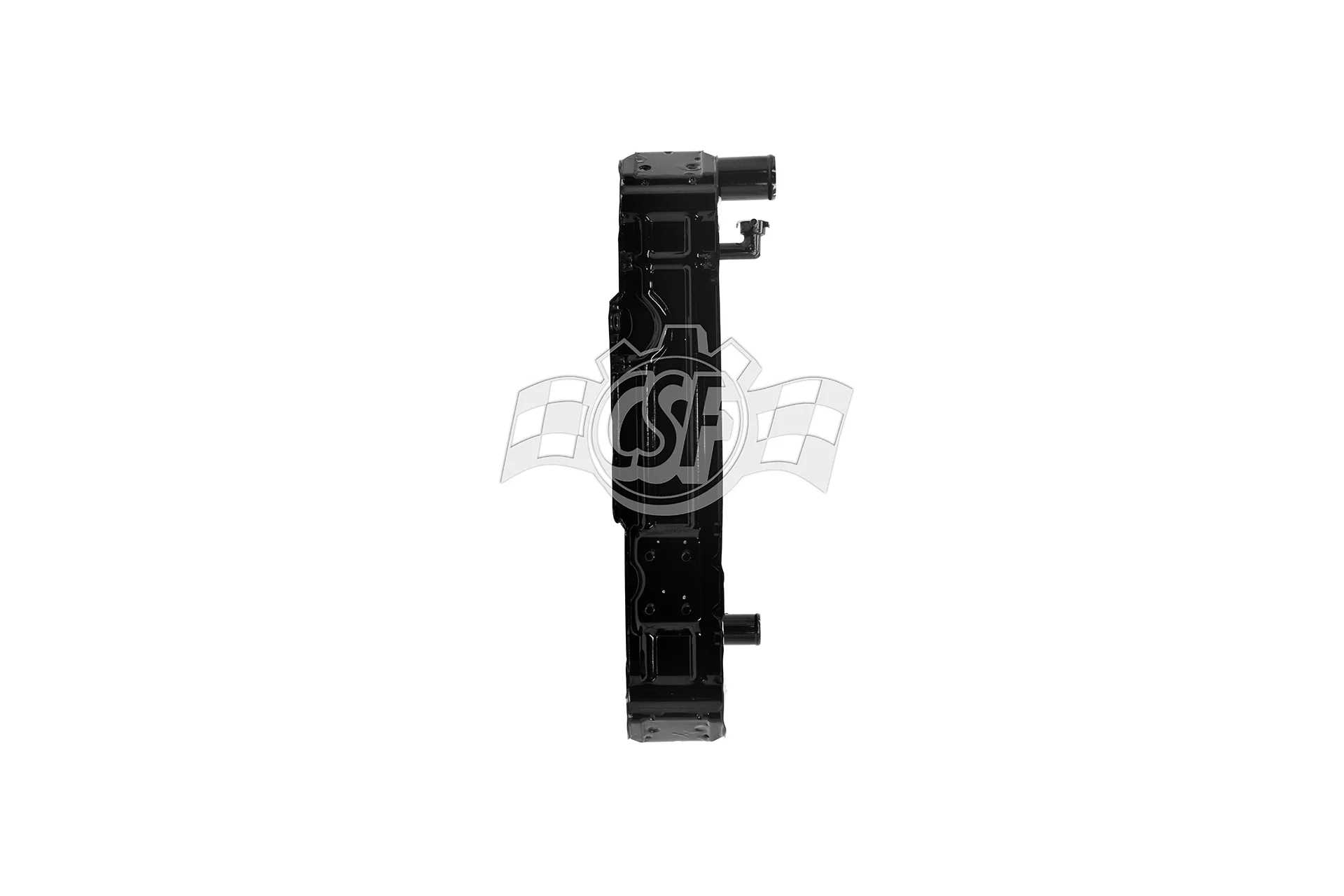

Replacement 4 Row All Metal Radiator <br> 1981-1987 Toyota Land Cruiser
Description:
CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Landcruiser running at its finest, a CSF Heavy-Duty Radiator is the obvious choice. CSF has spent years refining and improving their radiator designs. The original style copper/brass construction features ribbed brass end tanks for additional strength and reinforced side end plates and integrated metal core straps to withstand heavy vibration and chassis flex while off-roading. The 4-Row 65mm Heavy-Duty and High-Performance Copper Core offers the best cooling available in a design that is a true "drop-in" fit with no modifications necessary for installation. Whether you are off-roading, towing, or just casually driving your Landcruiser, trust the cooling experts at CSF for the best performing, high-quality, and reliable radiators.
Features:
100% leak tested before leaving factory at 150% of operating pressure
All components are installed, torqued & tested on Radiator during assembly
Built for OEM Cooling-High Performance Transmission Cooler with special Built-in Turbulators
Drop-in Fit
Easy to recore & repair
Fins (Heart of Radiator)-High Performance "Multi-Louvered Design"-OEM Spec
Industry Best Packaging-"10 Foot Drop Test" Standard
No risk for coolant contamination and damage to sensitive seals, water pump & thermostat
OEM specified "Single Piece-Deep Drawn" Brass Tanks with Ribs for added Strength & Durability
OEM specified Copper-Brass Construction
Reinforced Inlet & Outlet Connections with "Thru Pipe Design"
Side Channels-Coated Steel for Strength & Durability
Tubes-Special coated OEM specified "Double Lock Seam Joints" for Long Life
Box Length (in): 22 3/4
Box Width (in): 28 11/16
Box Height (in): 7 4/16
Box Weight (lbs): 26
Core Length (in): 15 3/4
Core Width (in): 23 15/16
Core Thickness (in): 2 5/16
Inlet Length (in): 23 15/16
Inlet Width (in): 2 13/16
Outlet Length (in): 23 15/16
Outlet Width (in): 2 13/16
Top Hose Fitting (in): 1 1/2 Left
Bottom Hose Fitting (in): 1 1/2 Right
No. Of Rows: 4
Oil Cooler (in): 15 3/8 (high-effeciency Concentric Type)
Core Material: Copper
Tank Material: Brass
Cross-flow/ Down-flow: Down Flow
Radiator Cap Supplied: No
Csf Cap Number: 4502
Hazardous Material: No
Tech Note: Rugged ALL METAL model.
Reference Number: 12,16400-61051,TO3010222,CU12
Package Includes:
Radiator
Compatible With:
1981-1987 Toyota Land Cruiser
CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Landcruiser running at its finest, a CSF Heavy-Duty Radiator is the obvious choice. CSF has spent years refining and improving their radiator designs. The original style copper/brass construction features ribbed brass end tanks for additional strength and reinforced side end plates and integrated metal core straps to withstand heavy vibration and chassis flex while off-roading. The 4-Row 65mm Heavy-Duty and High-Performance Copper Core offers the best cooling available in a design that is a true "drop-in" fit with no modifications necessary for installation. Whether you are off-roading, towing, or just casually driving your Landcruiser, trust the cooling experts at CSF for the best performing, high-quality, and reliable radiators.
Features:
Package Includes:
Compatible With:
