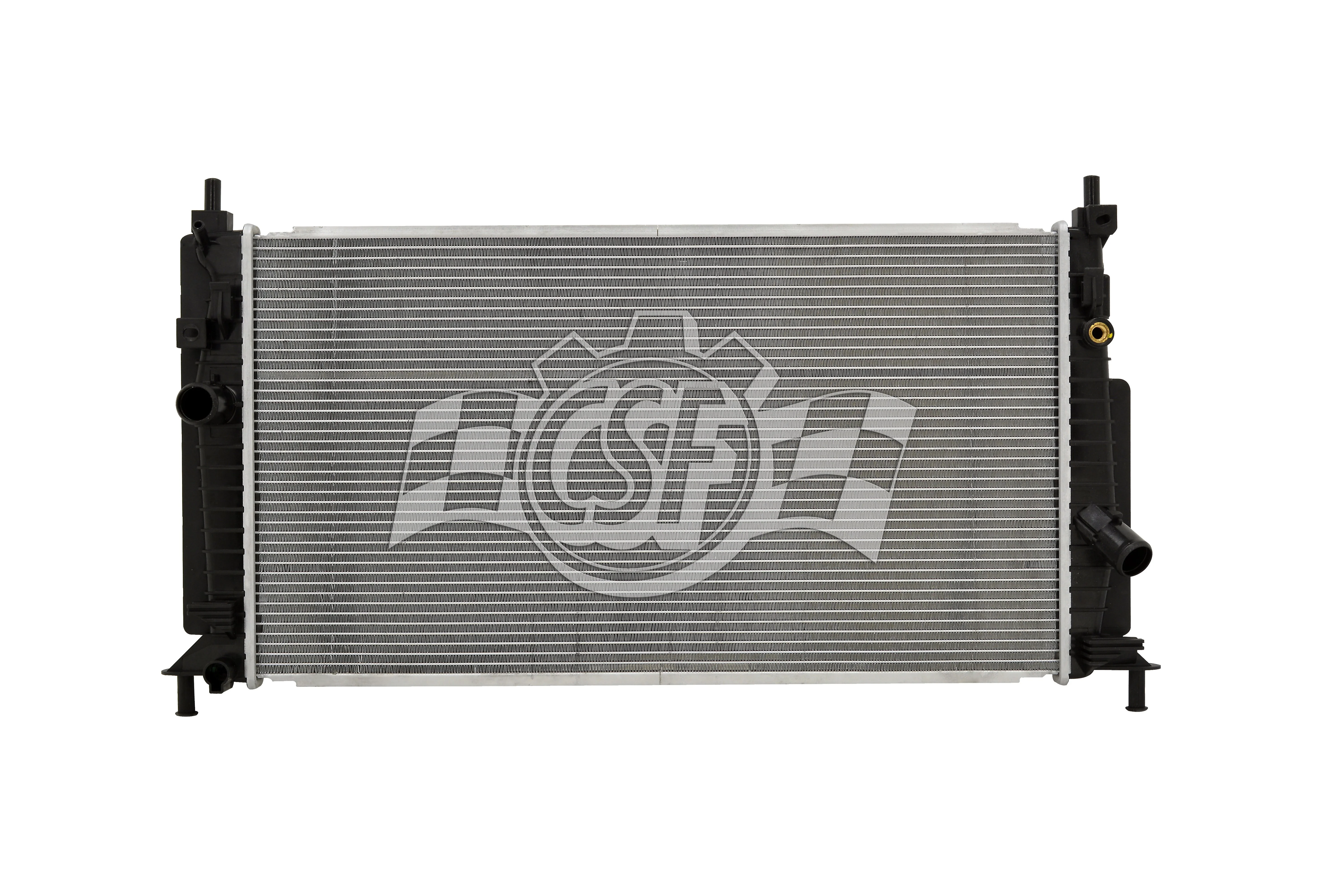

OEM Replacement 1 Row Aluminum Core Radiator <br> 10-13 Mazda 3 Sport

Description:

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years-over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

Features:

OEM specified Plastic Tank-Aluminum Core Construction

Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability

Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F

Tubes-Welded Type or Latest Generation "B-Tube" Design

Fins (Heart of Radiator)-High Performance "Multi-Louvered Design"-OEM Spec

100% leak tested before leaving factory at 150% of operating pressure

Industry Best Packaging-"10 Foot Drop Test" Standard

Drop-in Fit

High Performance Transmission Cooler with special Built-in Turburlator, when applicable

All components are installed, torqued, & tested on Radiator during assembly

Box Length (in): 34 13/16

Box Width (in): 19 5/8

Box Height (in): 5 4/16

Box Weight (lbs): 7

Core Length (in): 26 7/16

Core Width (in): 14 5/16

Core Thickness (in): 5/8

Inlet Length (in): 14 15/16

Inlet Width (in): 1 3/16

Outlet Length (in): 14 15/16

Outlet Width (in): 1 3/16

Top Hose Fitting (in): 1 5/16 Left

Bottom Hose Fitting (in): 1 5/16 Right

No. Of Rows: 1

Core Material: Aluminum

Tank Material: Plastic

Cross-flow/ Down-flow: Cross Flow

Radiator Cap Supplied: No

Hazardous Material: No

Tech Note: O.E.M. style Plastic tanks & Aluminum core. Upgraded Heavy Duty Core. 11% Thicker 15.5mm vs OEM 14mm

Reference Number: 13100,LF8M-15-20YD,MA3010228,CU13100,8013100,221-3508

Package Includes:

Radiator

Compatible With:

2010-2013 Mazda 3

2010,2012-2013 Mazda 3 Sport
