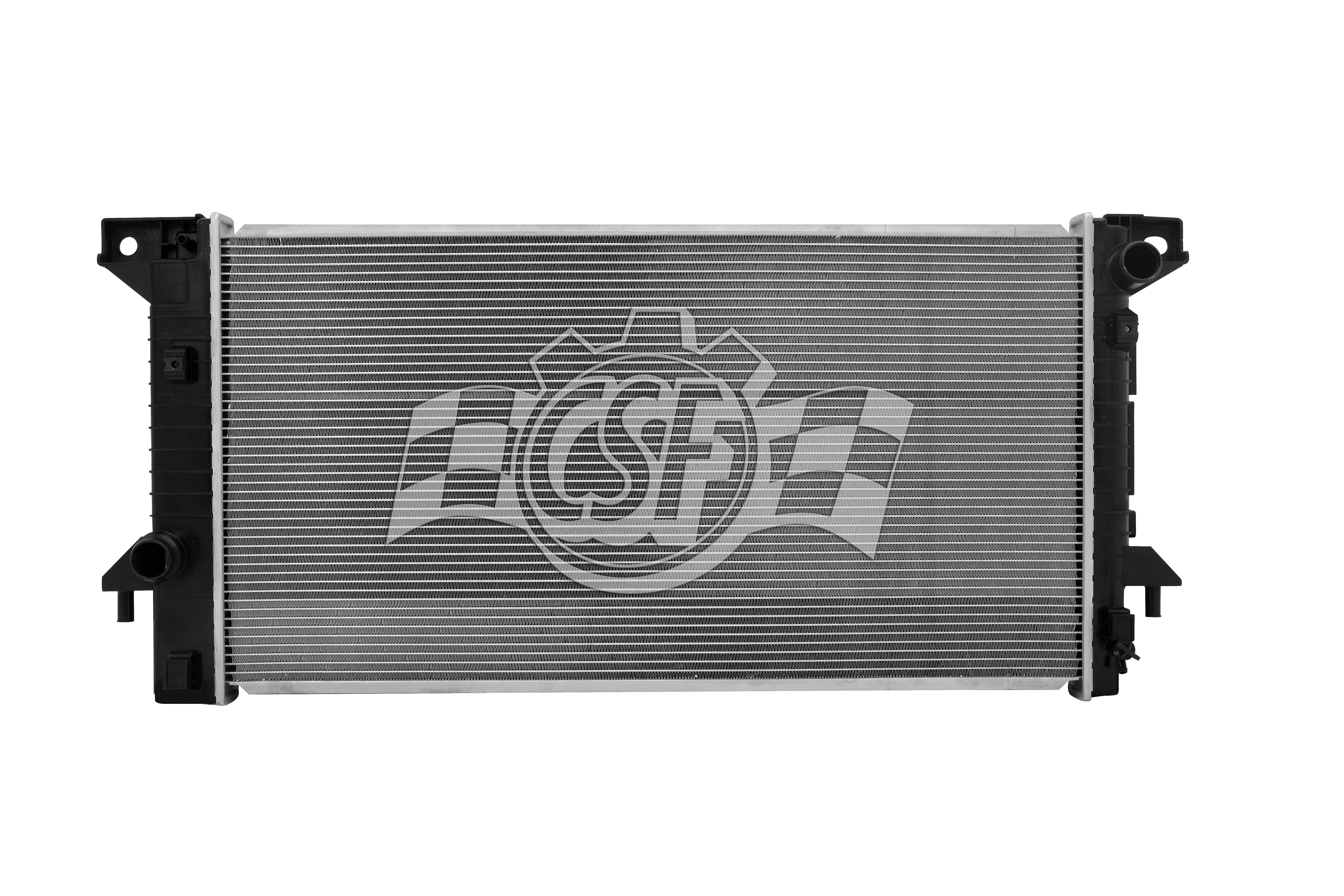

OEM Replacement 1 Row Aluminum Core Radiator <br> 11-17 Ford F-150 Expedition, Lincoln Navigator

Description:

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years-over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

Features:

OEM specified Plastic Tank-Aluminum Core Construction

Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability

Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F

Tubes-Welded Type or Latest Generation "B-Tube" Design

Fins (Heart of Radiator)-High Performance "Multi-Louvered Design"-OEM Spec

100% leak tested before leaving factory at 150% of operating pressure

Industry Best Packaging-"10 Foot Drop Test" Standard

Drop-in Fit

High Performance Transmission Cooler with special Built-in Turburlator, when applicable

All components are installed, torqued, & tested on Radiator during assembly

Box Length (in): 41 1/4

Box Width (in): 20 3/16

Box Height (in): 6 14/16

Box Weight (lbs): 16

Core Length (in): 31 9/16

Core Width (in): 16 5/16

Core Thickness (in): 1 1/4

Inlet Length (in): 17 3/4

Inlet Width (in): 2 1/16

Outlet Length (in): 17 3/4

Outlet Width (in): 2 1/16

Top Hose Fitting (in): 1 1/2 Right

Bottom Hose Fitting (in): 1 1/2 Left

No. Of Rows: 1

Oil Cooler (in): 12 (high-efficiency Plate Type)

Core Material: Aluminum

Tank Material: Plastic

Cross-flow/ Down-flow: Cross Flow

Radiator Cap Supplied: No

Hazardous Material: No

Tech Note: O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe.

Reference Number: 13225,13226,BL3Z 8005A,BL3Z 8005B,CL3Z 8005 A,FO3010306,FO3010303,CU13226,CU13228

Package Includes:

Radiator

Compatible With:

2011-2014 Ford F-150

2015-2017 Ford Expedition

2015-2017 Lincoln Navigator
