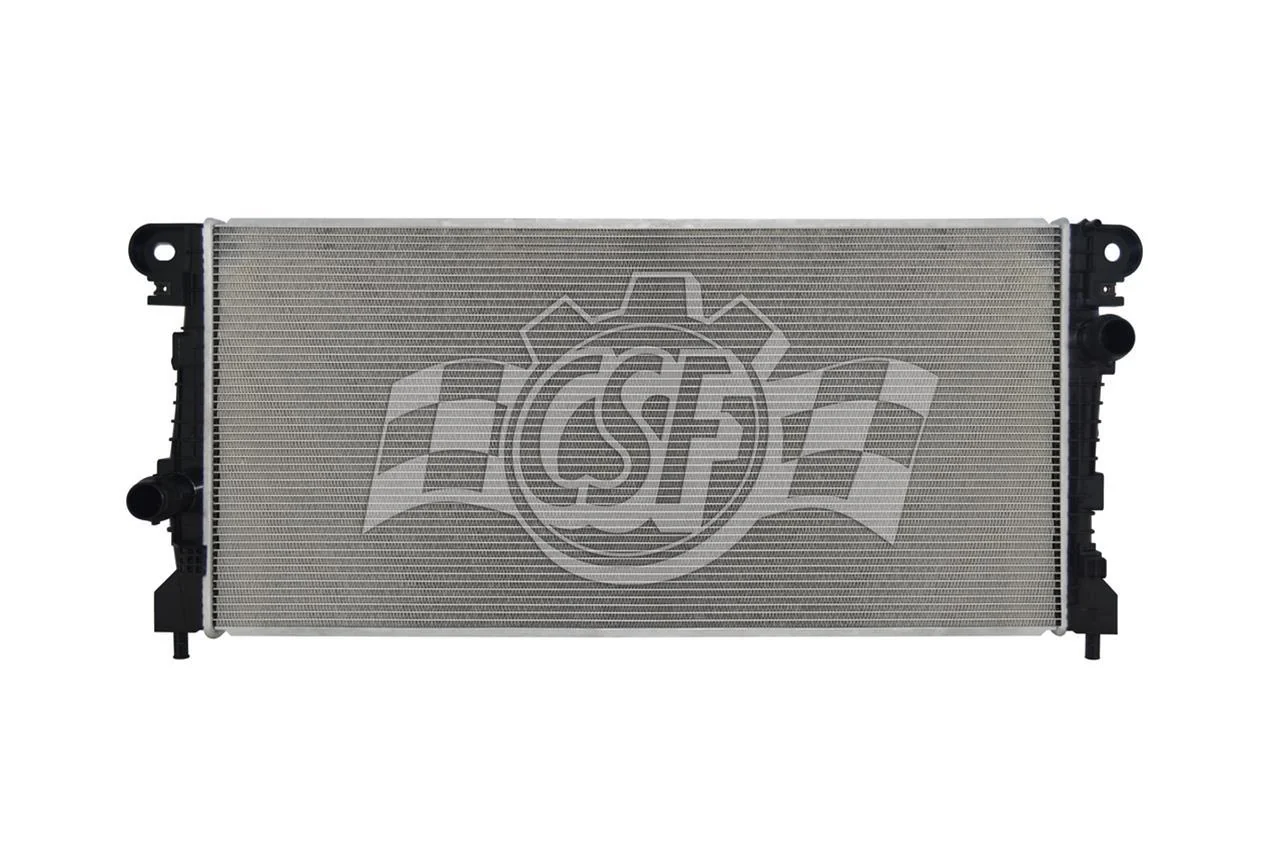

Replacement Radiator <br> 2022-2024 Ford Bronco

Description:

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years-over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

Features:

OEM specified Plastic Tank-Aluminum Core Construction

Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability

Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F

Tubes-Welded Type or Latest Generation "B-Tube" Design

Fins (Heart of Radiator)-High Performance "Multi-Louvered Design"-OEM Spec

100% leak tested before leaving factory at 150% of operating pressure

Industry Best Packaging-"10 Foot Drop Test" Standard

Drop-in Fit

High Performance Transmission Cooler with special Built-in Turburlator, when applicable

All components are installed, torqued, & tested on Radiator during assembly

Box Length (in): 41 7/8

Box Width (in): 19 13/16

Box Height (in): 7 7/16

Box Weight (lbs): 13

Core Length (in): 33 7/16

Core Width (in): 15 5/8

Core Thickness (in): 1 3/16

Inlet Length (in): 16 1/16

Inlet Width (in): 1 9/16

Outlet Length (in): 16 1/16

Outlet Width (in): 1 9/16

Top Hose Fitting (in): 1 1/2 Right

Bottom Hose Fitting (in): 1 1/2 Left

No. Of Rows: 1

Oil Cooler (in): No

Core Material: Aluminum

Tank Material: Plastic

Cross-flow/ Down-flow: Cross Flow

Radiator Cap Supplied: No

Csf Cap Number: No

Hazardous Material: No

Tech Note: O.E.M. style Plastic tank & Aluminum core with quick-connect inlet & outlet pipe. Upgraded Heavy Duty Core. 7% Thicker 30mm vs OEM 27mm

Reference Number: 14028,NB3Z 8005 A,NB3Z 8005 B,FO3010377

Package Includes:

Radiator

Compatible With:

2022-2024 Ford Bronco
