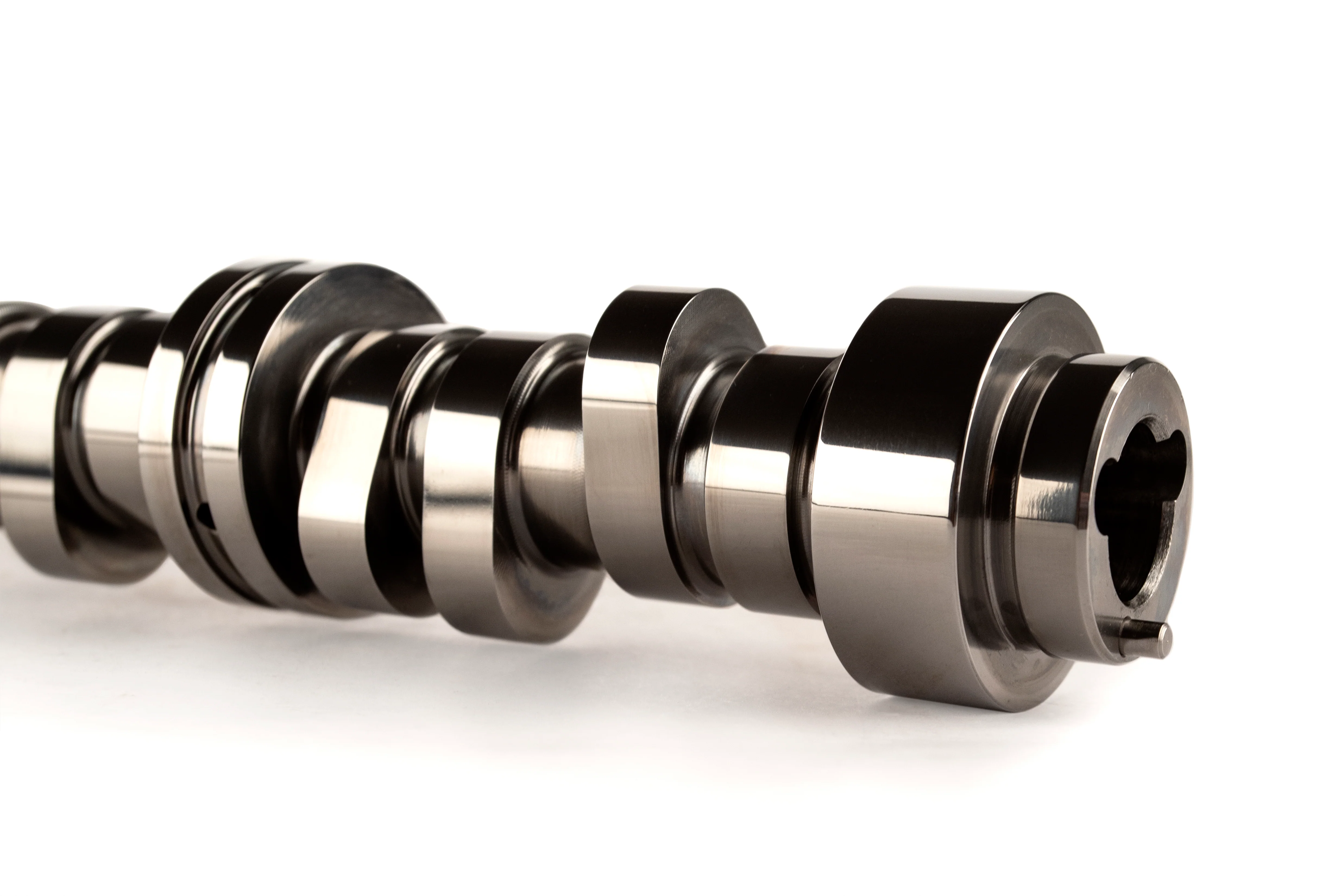

FSL Hydraulic Roller Camshaft <br> GM LS GEN IV

Description:

50 State Legal grind for GM L99/LS3 Gen IV Single Bolt with AFM and VVT. Works with stock components and tune, can gain 47+ HP increase in peak power.

Features:

The COMP Cams FSL Series Camshafts gain 30+ HP with no other mods and are the first performance aftermarket Camshaft for LS engines that meets the stringent Carb approval. Carb EO #D-279-12

Lobe Separation: 116 DD

Advertised Intake Duration Non-Deactivation Cylinders: 274 DD

Advertised Intake Duration Deactivation Cylinders: 286 DD

Advertised Exhaust Duration Non-Deactivation Cylinders: 264 DD

Advertised Exhaust Duration Deactivation Cylinders: 273 DD

Intake Valve Lift Deactivation Cylinders: 0.541

Exhaust Valve Lift Deactivation Cylinders: 0.541

Intake Valve Lift Non-Deactivation Cylinders: 0.541 IN

Exhaust Valve Lift Non-Deactivation Cylinders: 0.541 IN

Valve Springs Required: 26906

Engine Family: GM GEN IV LS Single-Bolt w/ VVT and AFM 8 Cylinder (2007-2015)

Camshaft Gear Attachment: Single-Bolt

VVT Limiter Required?: No

Camshaft Material: Billet Steel

Assembly Lubricant Included: No

Lifters Included: No

Cam Type: Hydraulic Roller

Lifter Type: Hydraulic Roller

Recommended Cam Install Kit: 5623

Grind Number: L99E264

Grind Number: L99E264

Camshaft Series: FSL

Basic Operating RPM Range: 1700-6900

Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: 210 DD

Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: 222 DD

Intake Duration at .050 Inch Lift Deactivation Cylinders: 212 DD

Exhaust Duration at .050 inch Lift Deactivation Cylinders: 224 DD

Package Includes:

Engine Camshaft
