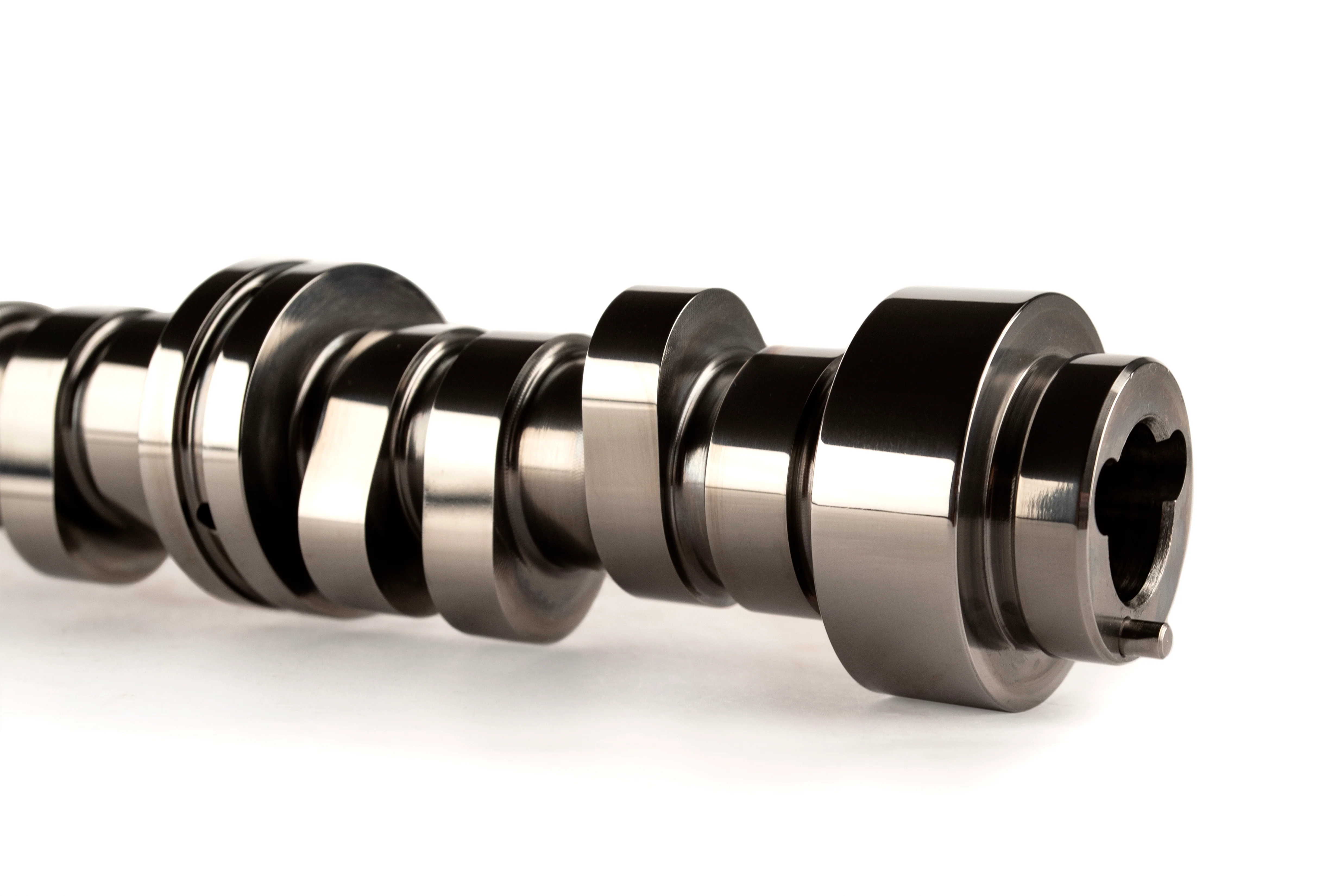

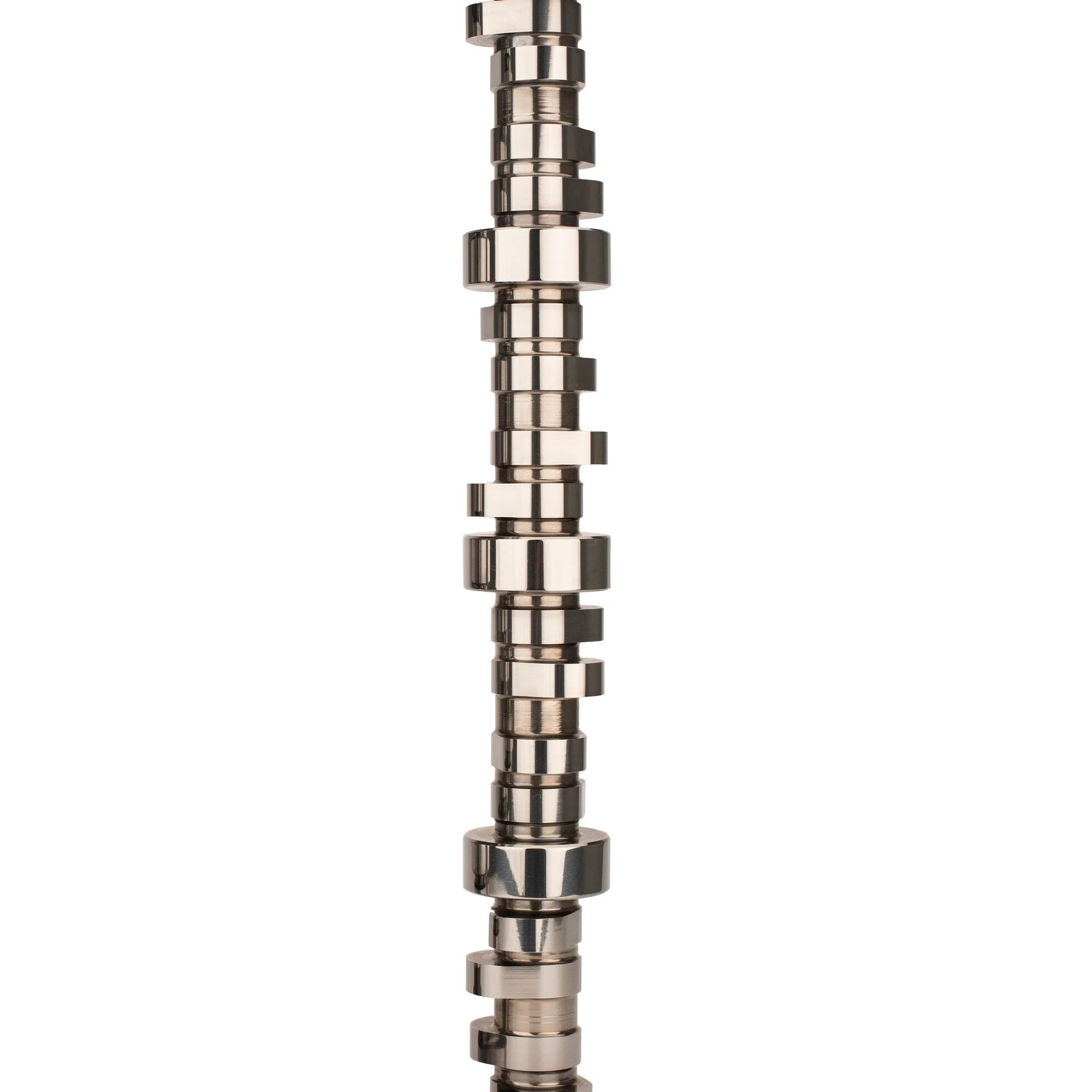

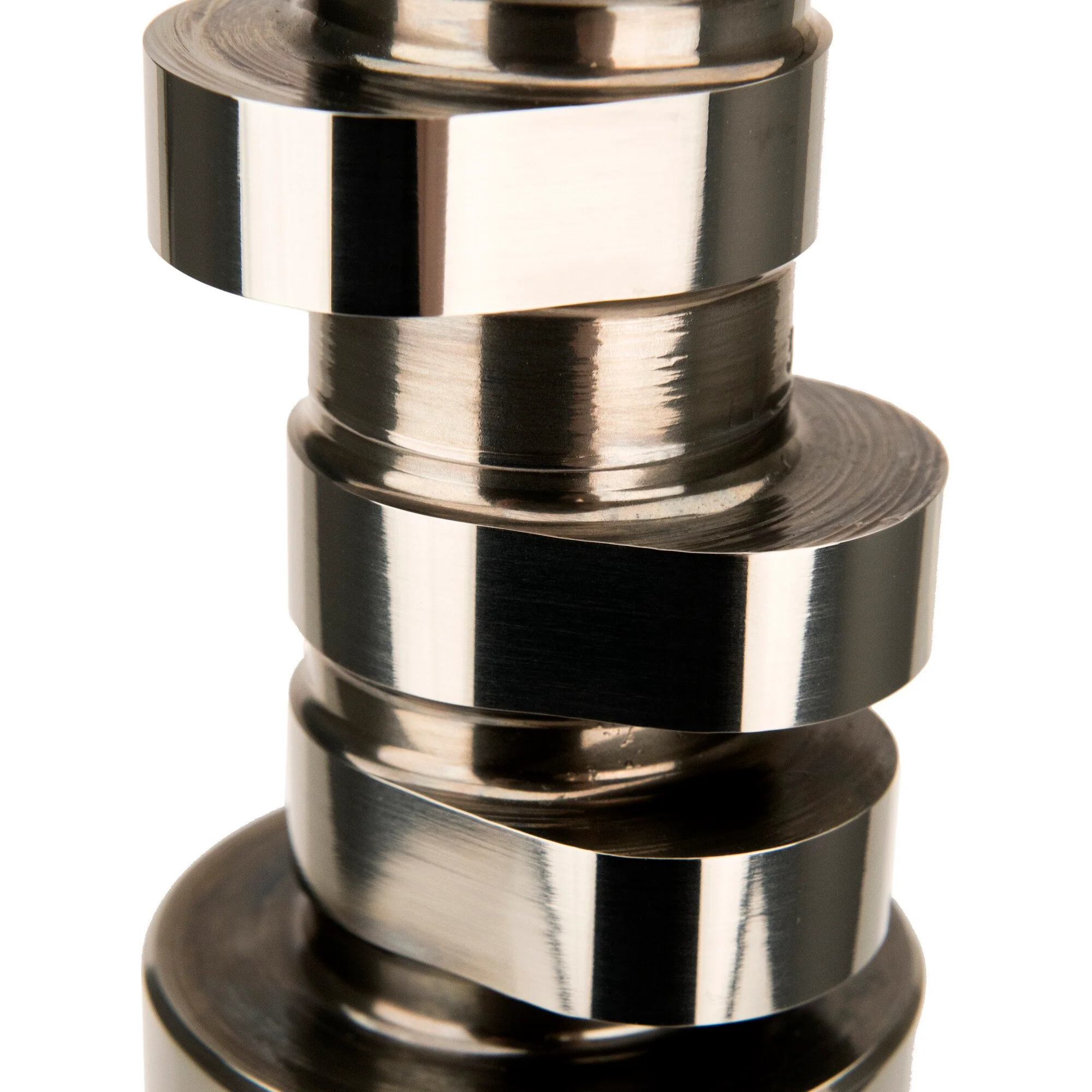

FSL Hydraulic Roller Camshaft <br> GM LS GEN IV

Description:

50 State legal grind for GM L99/LS3 Gen IV single bolt with VVT and AFM. Bolt in with stock components and tune, can produce 32+ HP increase in peak power.

Features:

The COMP Cams FSL Series Camshafts gain 30+ HP with no other mods and are the first performance aftermarket Camshaft for LS engines that meets the stringent Carb approval. Carb EO #D-279-13

Lobe Separation: 117 DD

Advertised Intake Duration Non-Deactivation Cylinders: 270 DD

Advertised Exhaust Duration Non-Deactivation Cylinders: 260 DD

Advertised Intake Duration Deactivation Cylinders: 282 DD

Advertised Exhaust Duration Deactivation Cylinders: 269 DD

Intake Valve Lift Deactivation Cylinders: 0.541 IN

Exhaust Valve Lift Deactivation Cylinders: 0.541

Intake Valve Lift Non-Deactivation Cylinders: 0.541

Exhaust Valve Lift Non-Deactivation Cylinders: 0.541 IN

Assembly Lubricant Included: No

Engine Family: GM GEN IV LS Single-Bolt w/ VVT and AFM 8 Cylinder (2007-2015)

Lifters Included: No

Valve Springs Required: 26906

Camshaft Material: Billet Steel

Camshaft Gear Attachment: Single-Bolt

Cam Type: Hydraulic Roller

Lifter Type: Hydraulic Roller

Recommended Cam Install Kit: 5623

Camshaft Series: FSL

Grind Number: L99E260

Grind Number: L99E260

Basic Operating RPM Range: 1600-6800

Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: 206 DD

Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: 218 DD

Intake Duration at .050 Inch Lift Deactivation Cylinders: 208 DD

Exhaust Duration at .050 inch Lift Deactivation Cylinders: 220 DD

Package Includes:

Engine Camshaft
