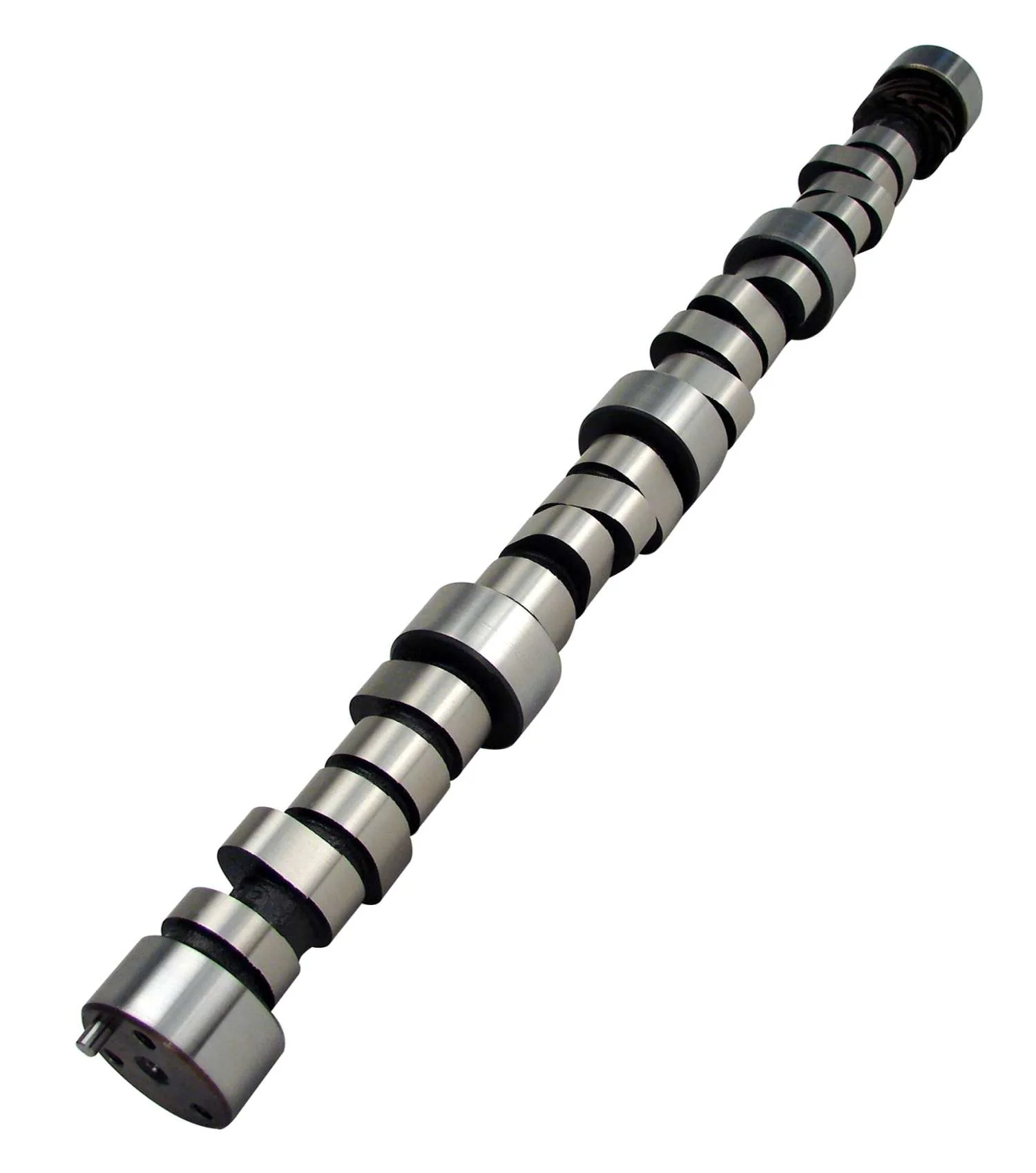

XFI Hydraulic Roller Camshaft <br> 58-98 Chevy Small Block 262-400 V8

Description:

• For Retro-Fit (Link Bar) Hydraulic Roller Lifters
  Fits '58-'02 262-400 c.i.d. Chevy Small Blocks
• Street/strip - Best at wide-open throttle - Need all upgrades with 2600+ converter - 9.5:1 compression
• Xtreme Fuel Injection (XFIa?¡é) -Newest and quickest lobe profiles in the Xtreme family
  Provide a terrific increase in performance - Tuned for use in EFI Applications where extra air flow signal through the carburetor is not required (feature wider lobe separation with o loss of responsiveness) - Work well with aftermarket cylinder heads and feature high lift
• WARNING: Camshaft Optimized for use with a Melanized or Nitrided distributor Gear. Not compatible with cast or Steel Gears without similar surface treatments. Failure to utilize the proper distributor Gear will void all warranties and/or return policies.

1: Cams for '55-'57 engines can be custom ordered. 2: The '87+ Chevy Small Block received provisions for Roller lifters. Most '87 - '93 GM cars came with Roller lifters, but most '87 - '95 trucks came with flat tappet lifters in Roller lifter style blocks. If your block has '87+ OEM-style Roller Cam provisions but does not have Roller components fitted, COMP Hydraulic Roller Lifter Install Kit for '91-'02 Blocks can be purchased. As well as a '87+ OE-Style COMP Hydraulic Roller Cam.

Features:

Camshaft Series: XFI

Lobe Separation: 113 DD

Intake Valve Lift: 0.584 IN

Exhaust Valve Lift: 0.579 IN

Lifters Included: No

Valve Springs Required: Yes

Assembly Lubricant Included: No

Camshaft Gear Attachment: 3-Bolt

Camshaft Material: Austempered Ductile Iron

Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)

Cam and Lifter Kit Upgrade: CL12-468-8

Usage: Street/Performance

K-Kit Upgrade: K12-468-8

Lifter Type: Hydraulic Roller

SK-Kit Upgrade: SK12-468-8

Cam Type: Hydraulic Roller

Grind Number: 292XFI HR-13

Grind Number: 292XFI HR-13

Basic Operating RPM Range: 2,200-6,200

Intake Duration at .050 Inch Lift: 242 DD

Exhaust Duration at .050 inch Lift: 248 DD

Advertised Intake Duration: 292 DD

Advertised Exhaust Duration: 300 DD

Package Includes:

Engine Camshaft
