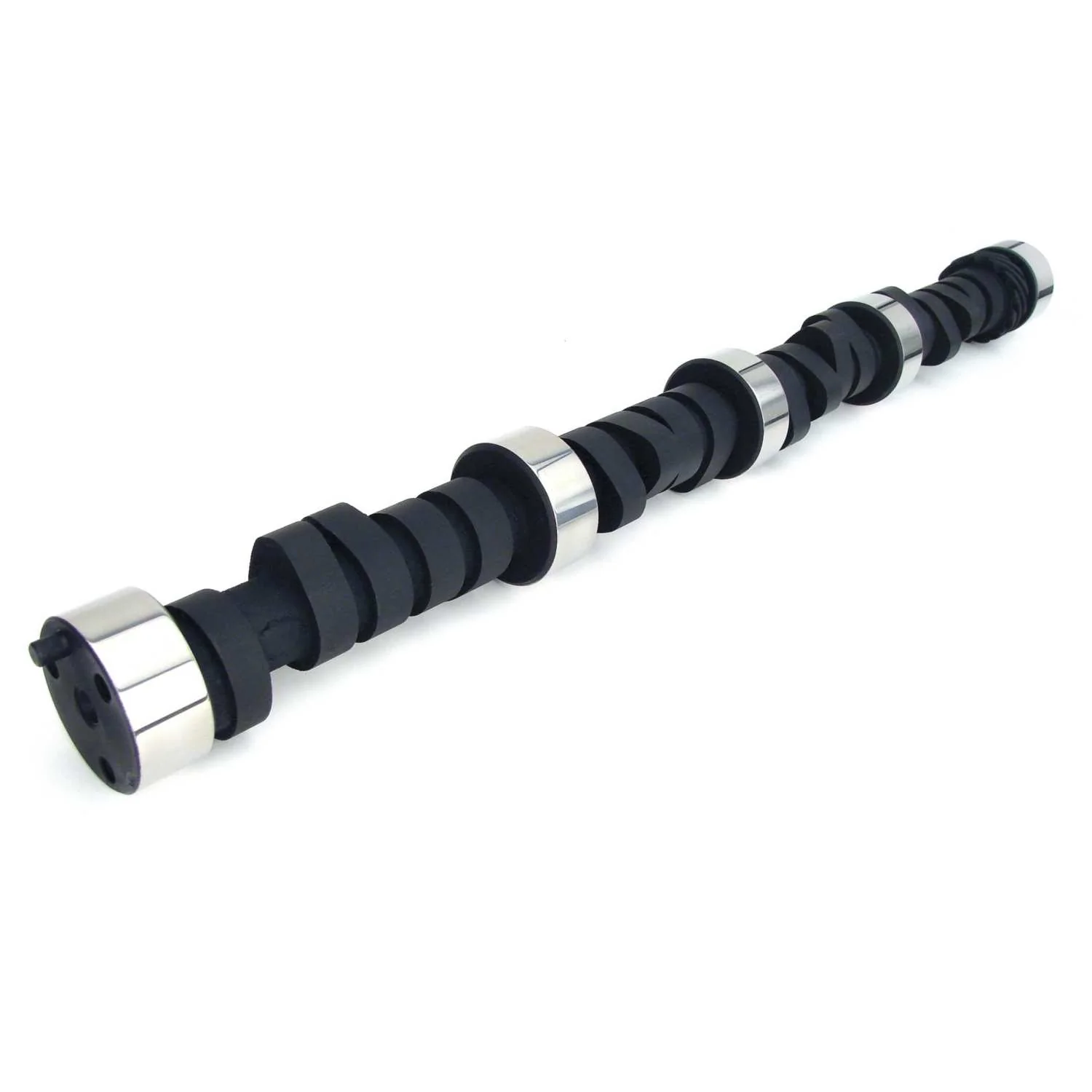

Magnum Marine Solid Flat Tappet Camshaft <br> 67-96 Big Block Chevy 396-454 V8

Description:

BBC - 1965-66 396 c.i.d. models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order.

Features:

2600-3000 lbs. car, 11.5:1+ compression with 4500+ stall. Excellent for 427-454c.i. Jet boat with B impeller. Flat and hydro. Bracket race. Use tunnel ram.

Camshaft Series: Magnum Marine

Lobe Separation: 108 DD

Intake Valve Lift: 0.638 IN

Exhaust Valve Lift: 0.631 IN

Lifters Included: No

Valve Springs Required: Yes

Assembly Lubricant Included: Yes

Camshaft Gear Attachment: 3-Bolt

Camshaft Material: Cast Iron

Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)

Cam and Lifter Kit Upgrade: CL11-605-5

Usage: Marine

K-Kit Upgrade: K11-605-5

Lifter Type: Solid Flat Tappet

SK-Kit Upgrade: SK11-605-5

Cam Type: Solid Flat Tappet

Grind Number: 310B-8

Grind Number: 310B-8

Basic Operating RPM Range: 4,200-7200

Intake Duration at .050 Inch Lift: 270 DD

Exhaust Duration at .050 inch Lift: 276 DD

Advertised Intake Duration: 310 DD

Advertised Exhaust Duration: 314 DD

Package Includes:

Engine Camshaft
