1300 Series Hydraulic Bearing <br> 1.590 ID X 3.000 OD
Description:

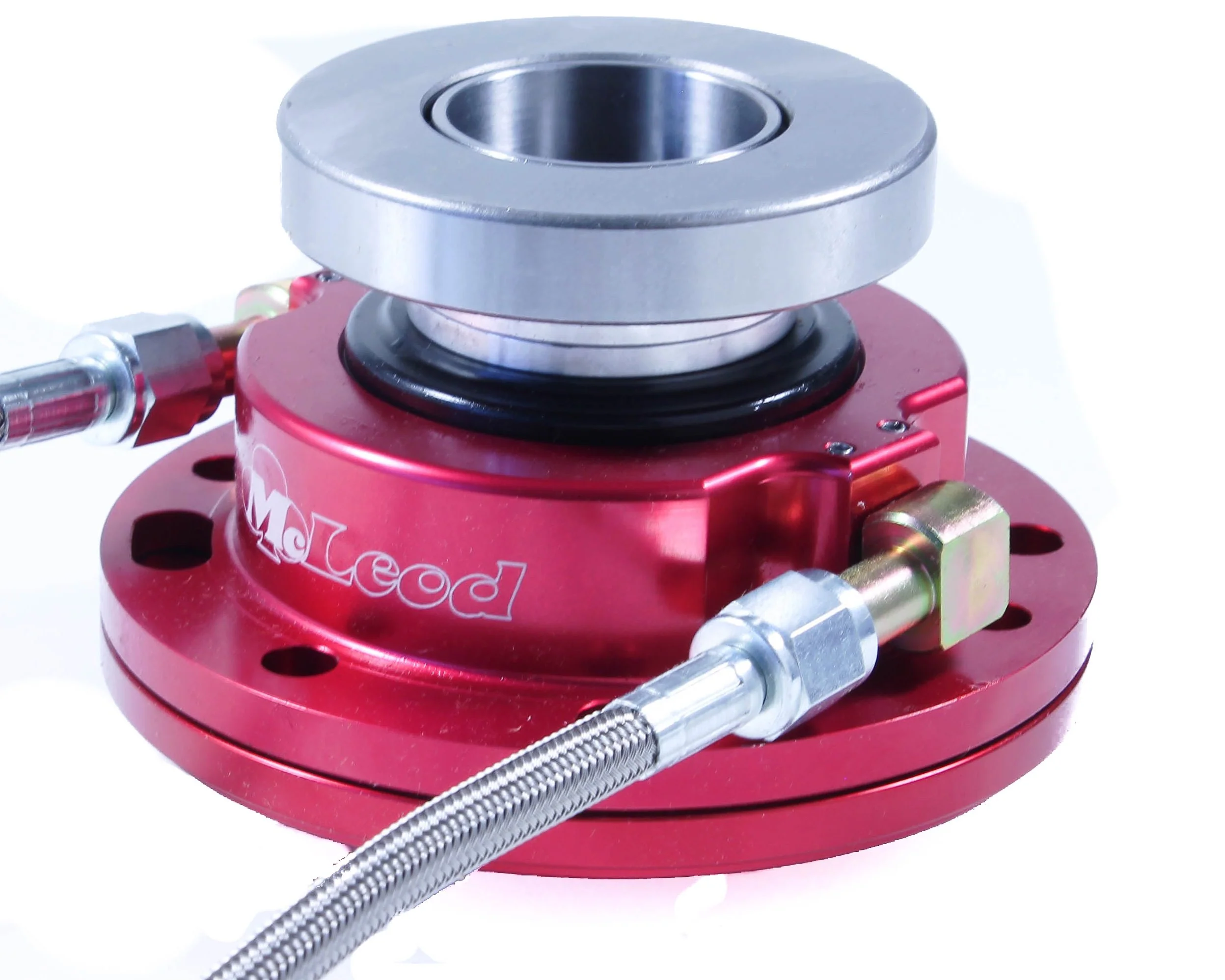

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.
Features:
Hard Anodized Billet Aluminum.

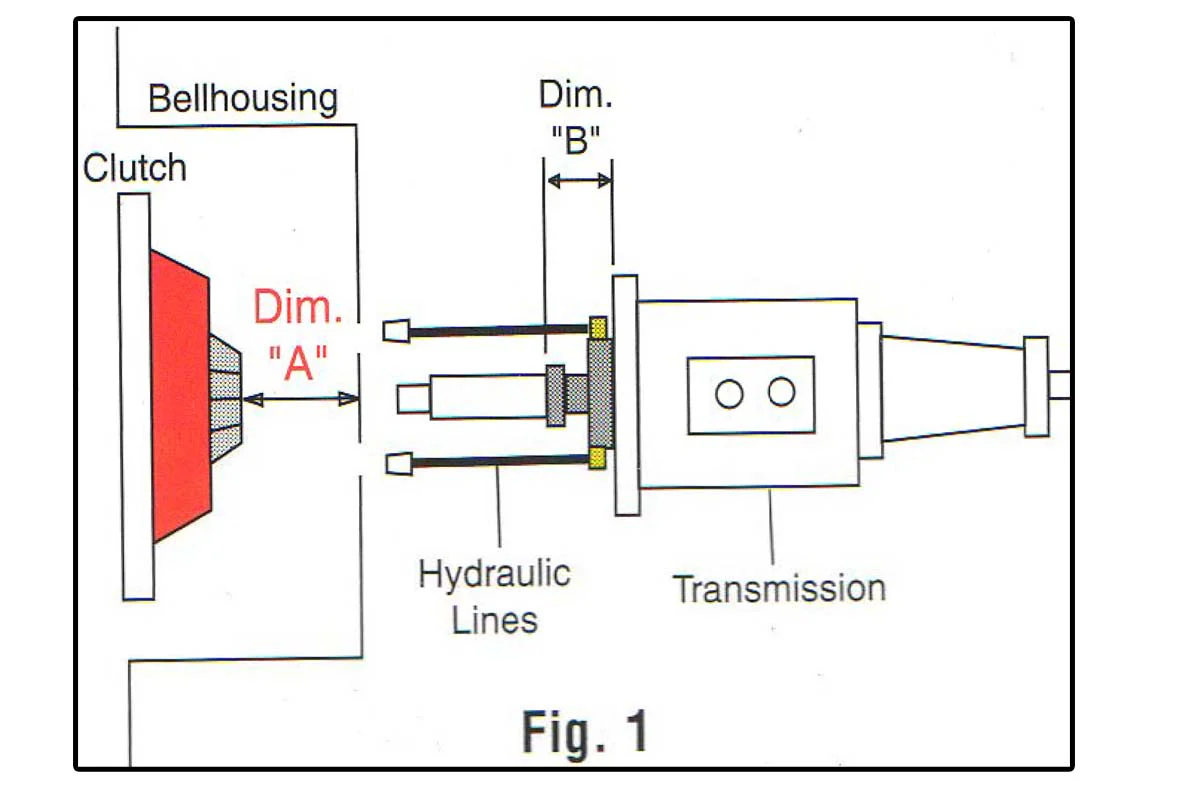

A Dimension: 2.50 in. to 2.99 in.
Bearing Face I.D. (in.): 1.590 in
Bearing Face O.D. (in.): 3.000 in

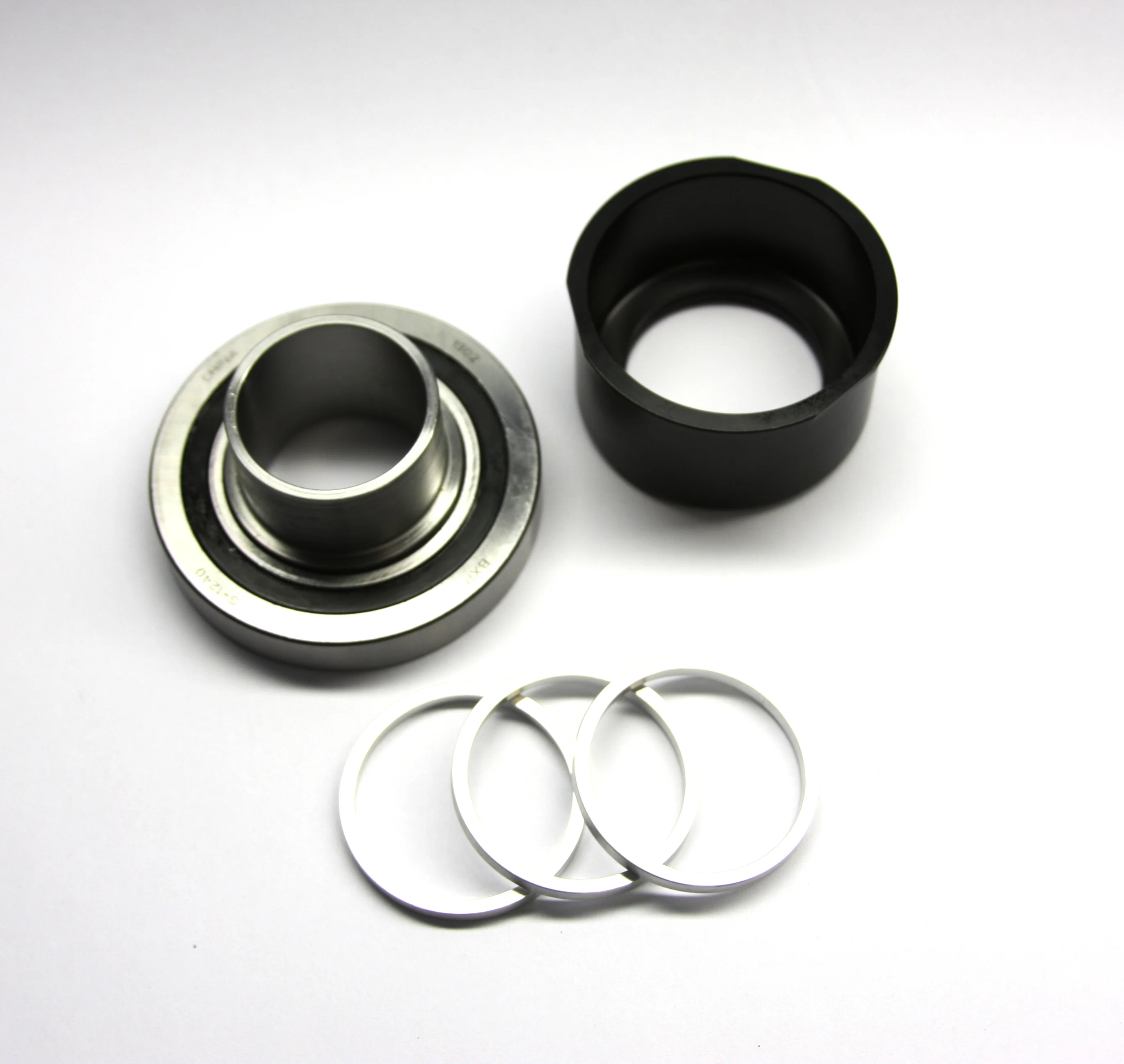

Height 1 Spacer: 2.590In.
Height 2 Spacers: 2.740
Height 3 Spacers: 2.890In.
Master Cylinder Bore Size: 0.750 in
Master Cylinder: Universal
Note 2: This bearing will NOT work with counter weighted diaphragm pressure plates.
Note 3: This kit comes with a universal master cylinder that is not specific to any firewall. Customer is responsible for engineering and fabricating master cylinder mount with a 6:1 pedal ratio for proper pedal feel and stroke.
Note: This bearing will NOT work with a OEM self adjusting pressure plate.

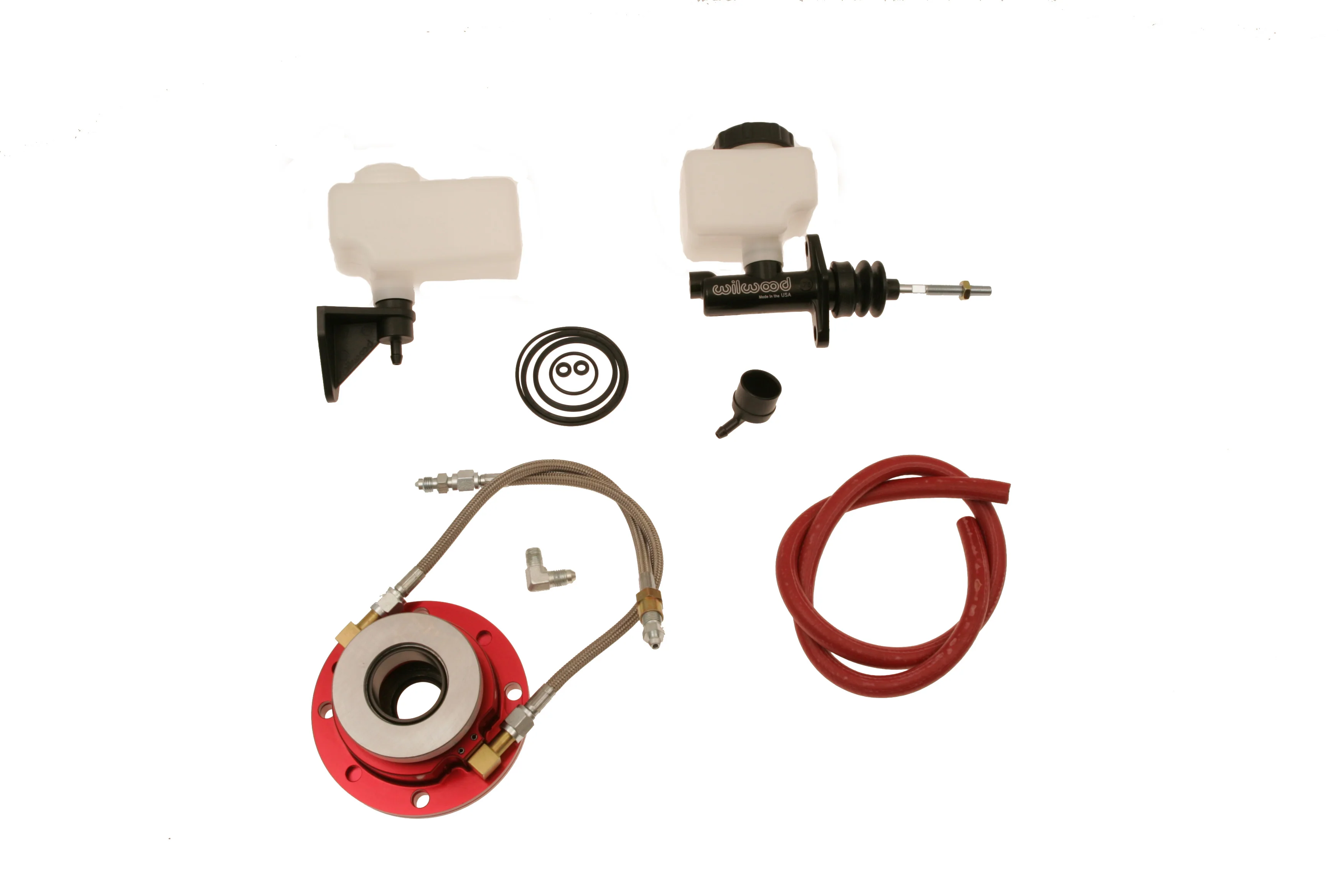

Package Includes:
Clutch Release Bearing
Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.
Features:
Package Includes:
