Race X Charge-Air-Cooler Manifold <br> 19-26 BMW X5/7 7/5/8 Series Toyota GR Supra
Description:
CSF has included a port pad into the machining of the tank on the manifold inlet side. The ports can be used to measure additional parameters or as an additional vacuum source. The Race X Manifold has two additional 1/4" NPT ports to go along with the standard three 1/8" NPT ports. Each port can be plugged with the included hardware kit if they are not used.
Features:

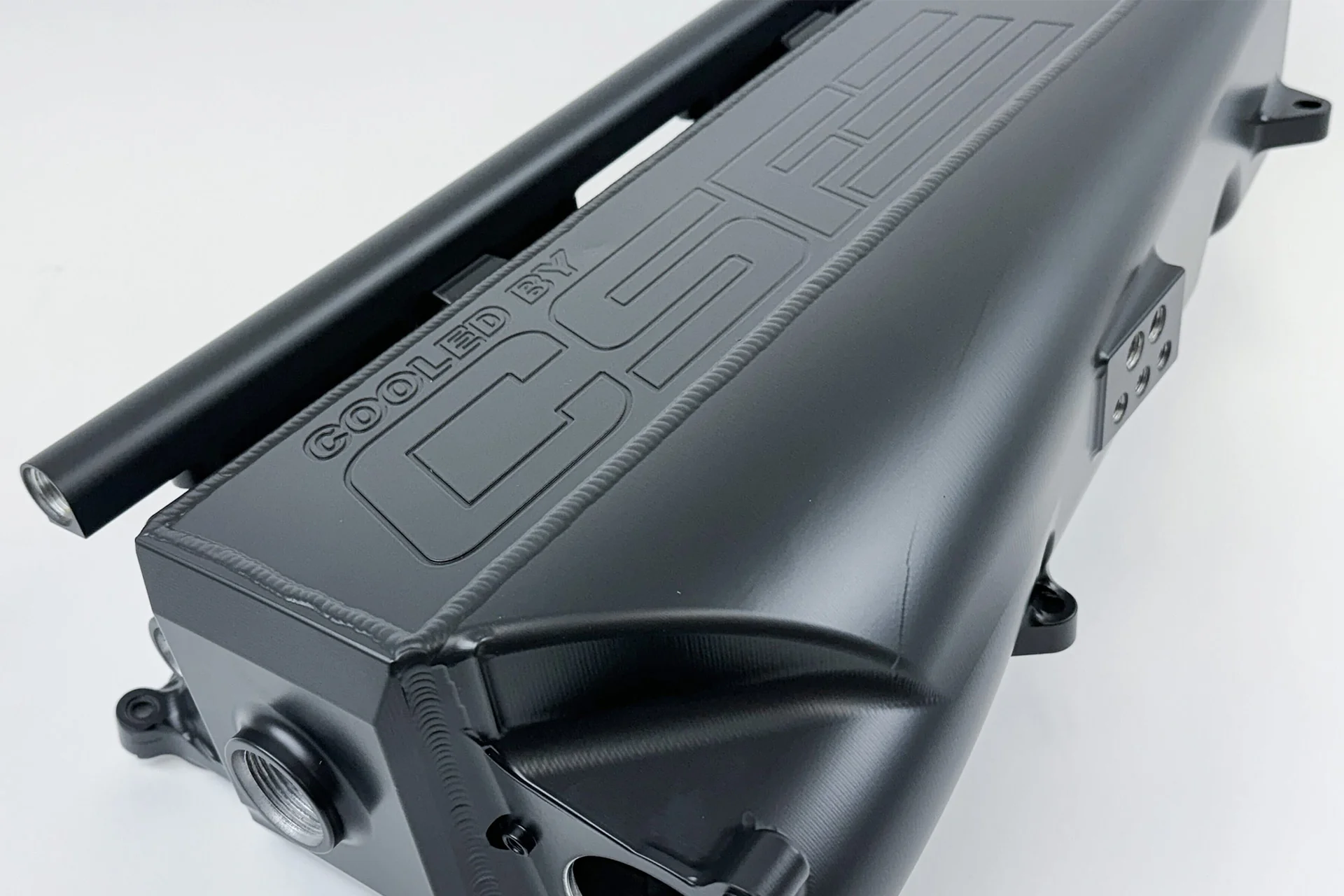

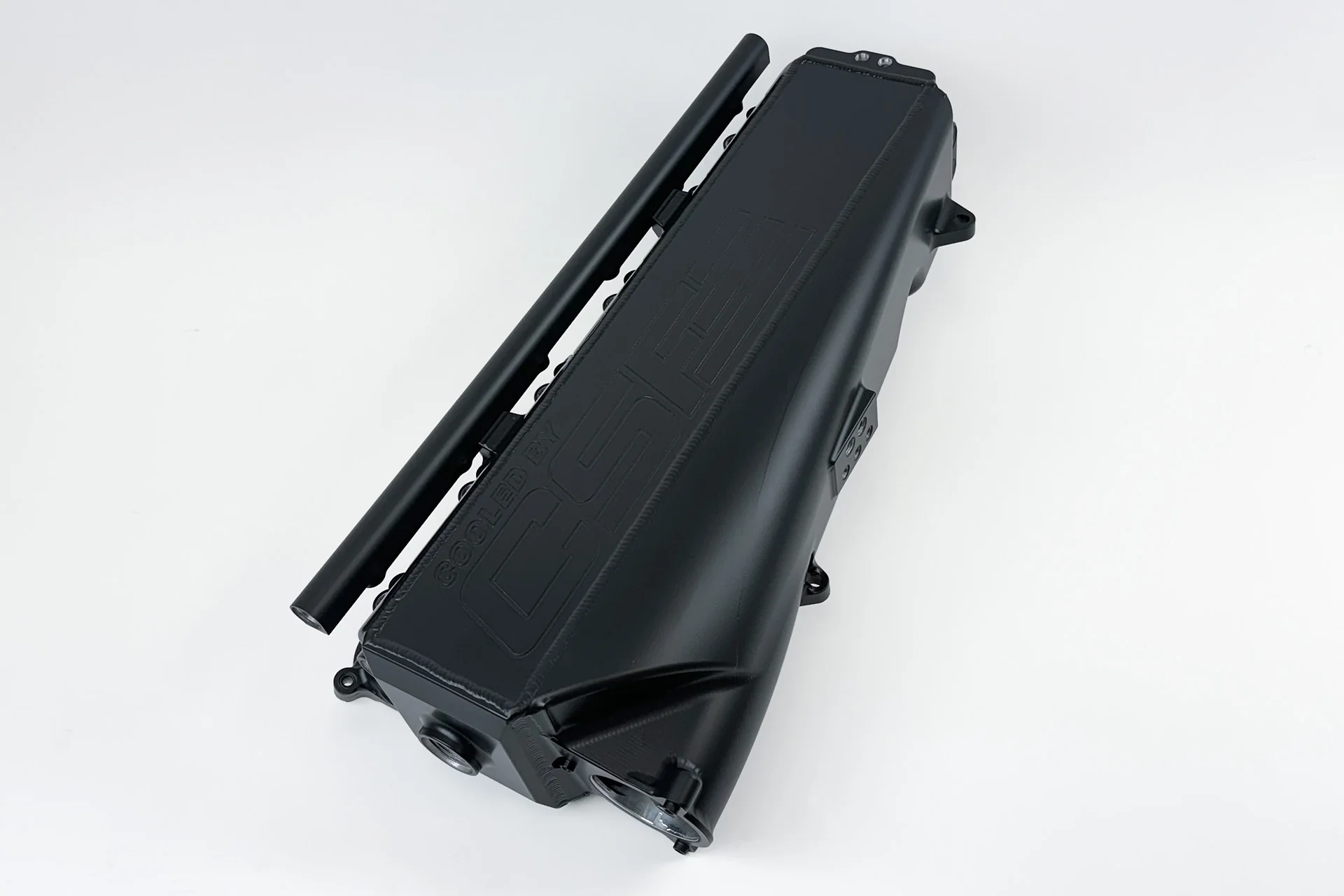

Comes Finished in Thermal Black Heat Dispersion Cerakote (Available in Raw Billet-CSF #8400 or Custom Finishes-CSF #8400C)

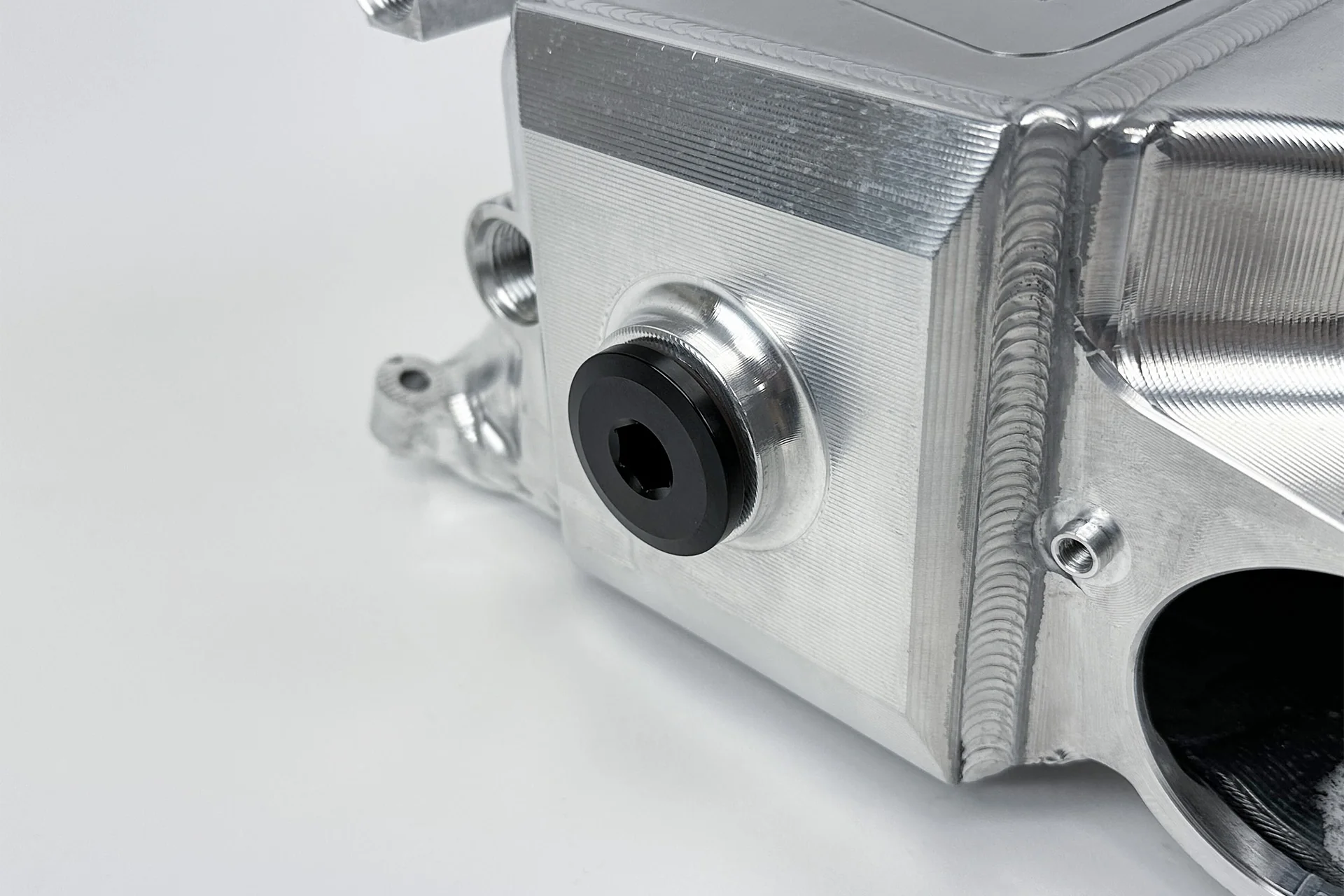

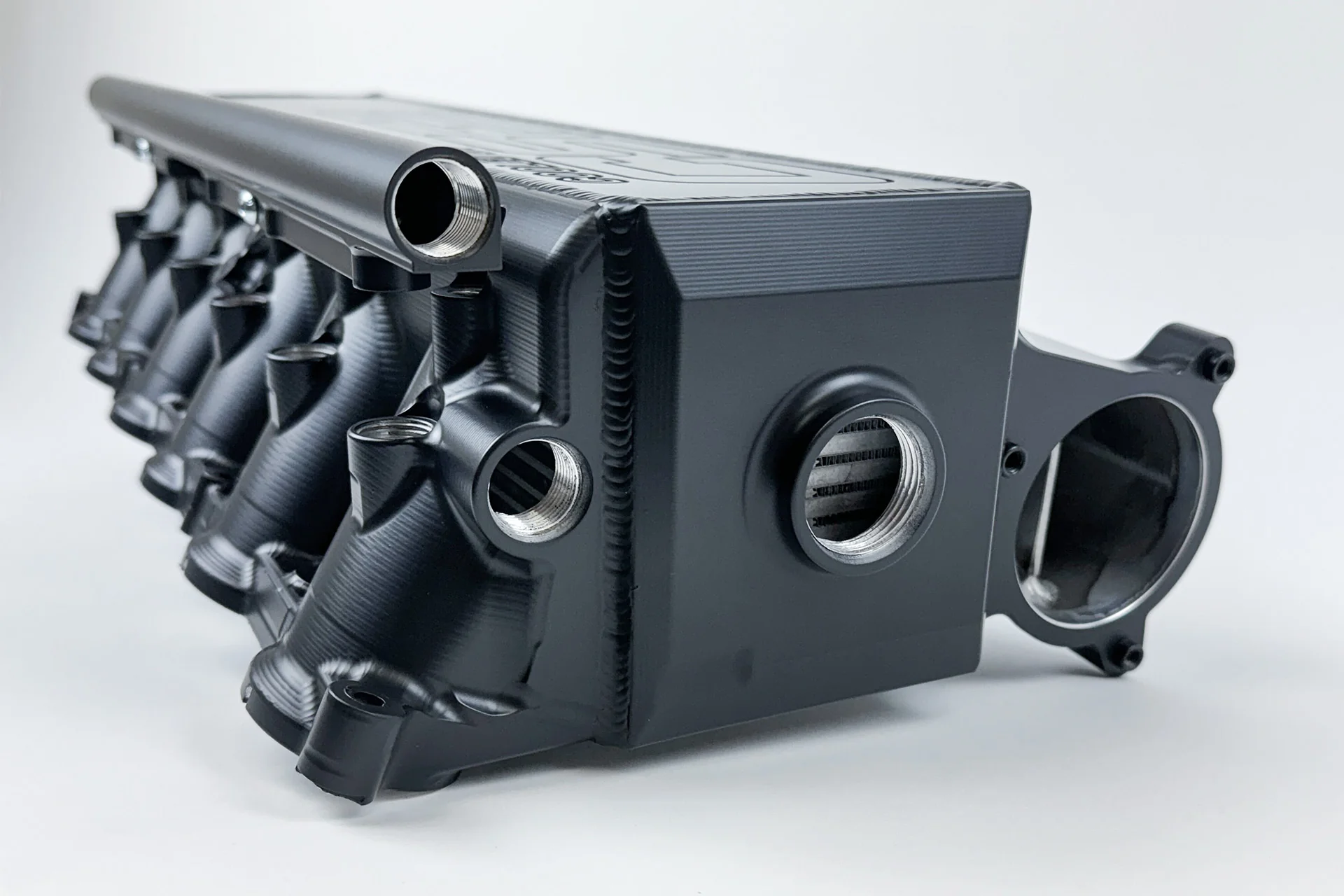

Core can be setup for dual or single pass: The -16 ORB bung on front water end plate can be used to adjust the flow configuration to single-pass and/or to be used with an ice-box setup. Includes CNC machined plug for dual-pass configuration
Designed in SolidWorks Using Computational Fluid Dynamics (CFD)
Easy Access to Spin-Off Oil Filter for Quick Oil Changes
Improved slotted mounting holes on throttle body side for easier installation

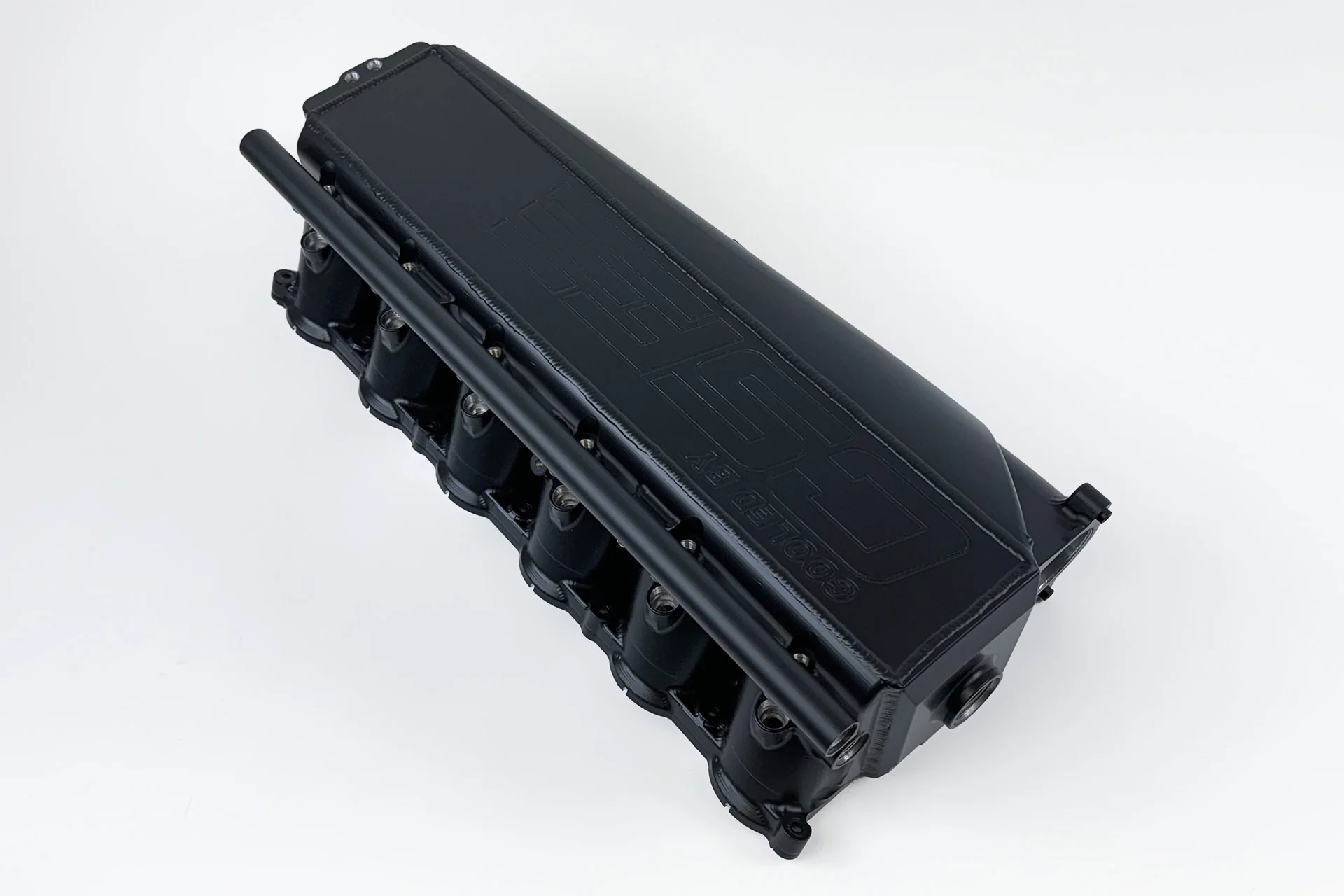

Included Fuel Rail for Top Feed Port Injection
Included KIYLEX Thermal Rejection Manifold Spacer-Proven to lower intake manifold temperatures by up to 15%

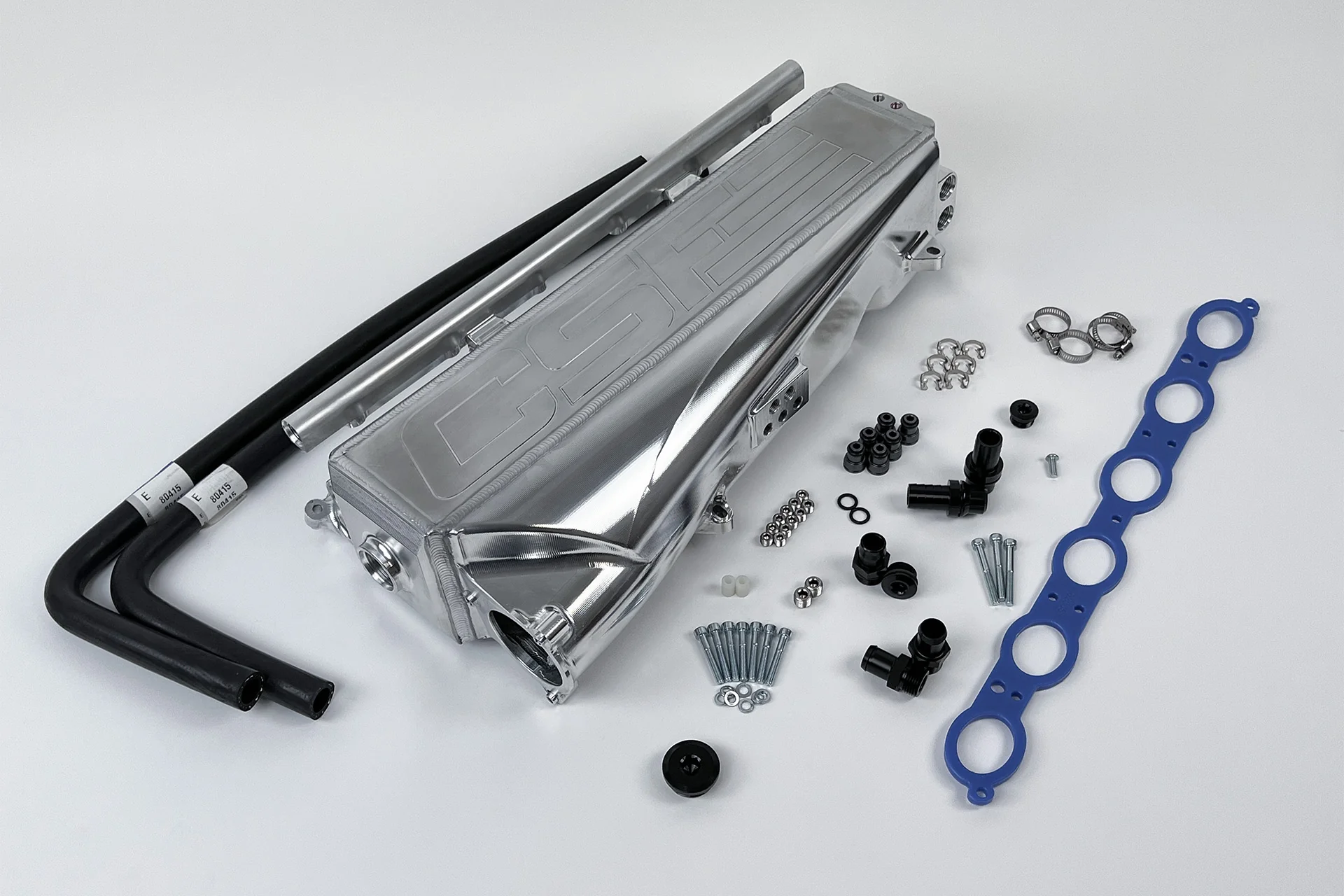

Includes Hardware and Installation Kit with Picture Diagrams and Instructions

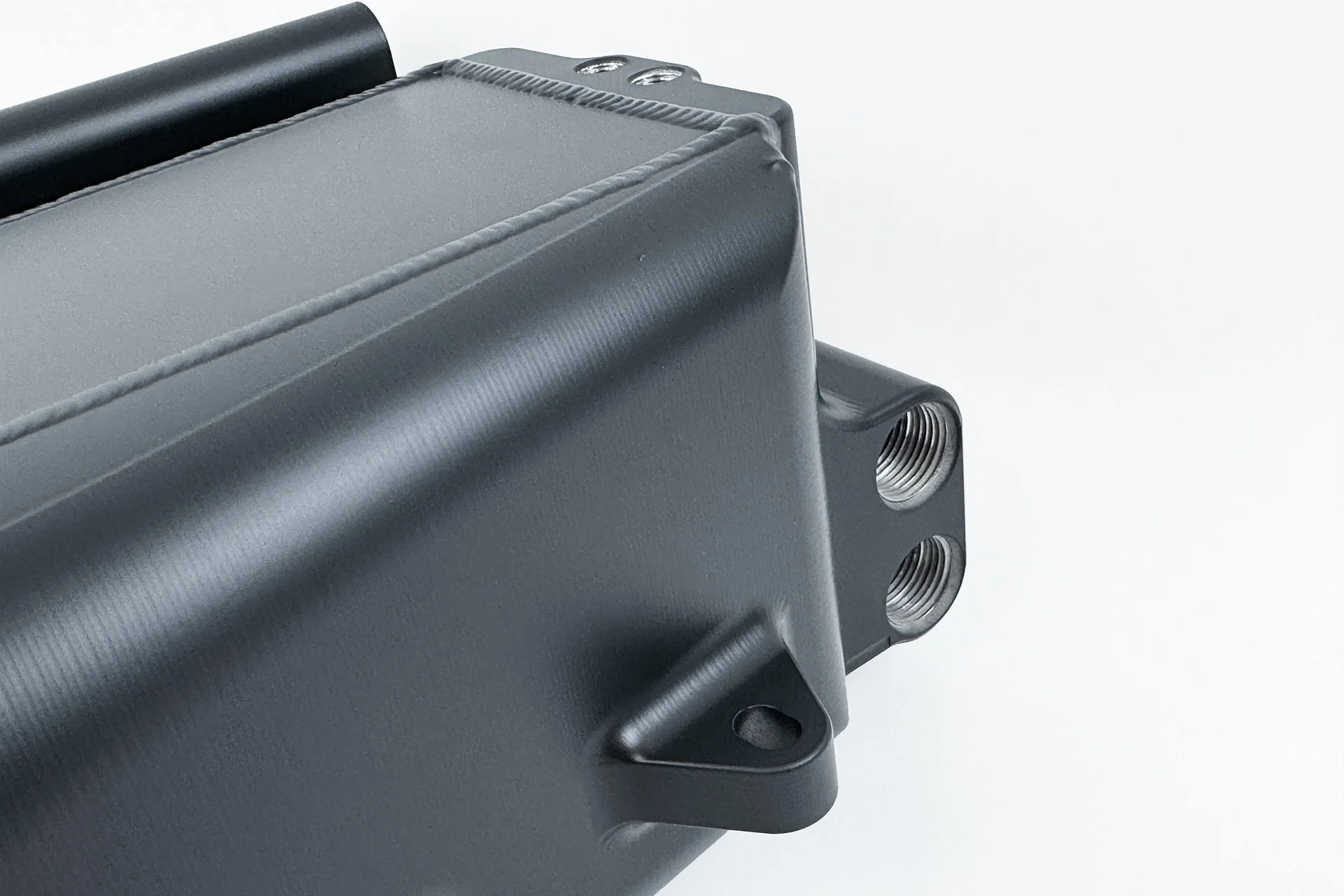

Individual 1/8" NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Bleeding

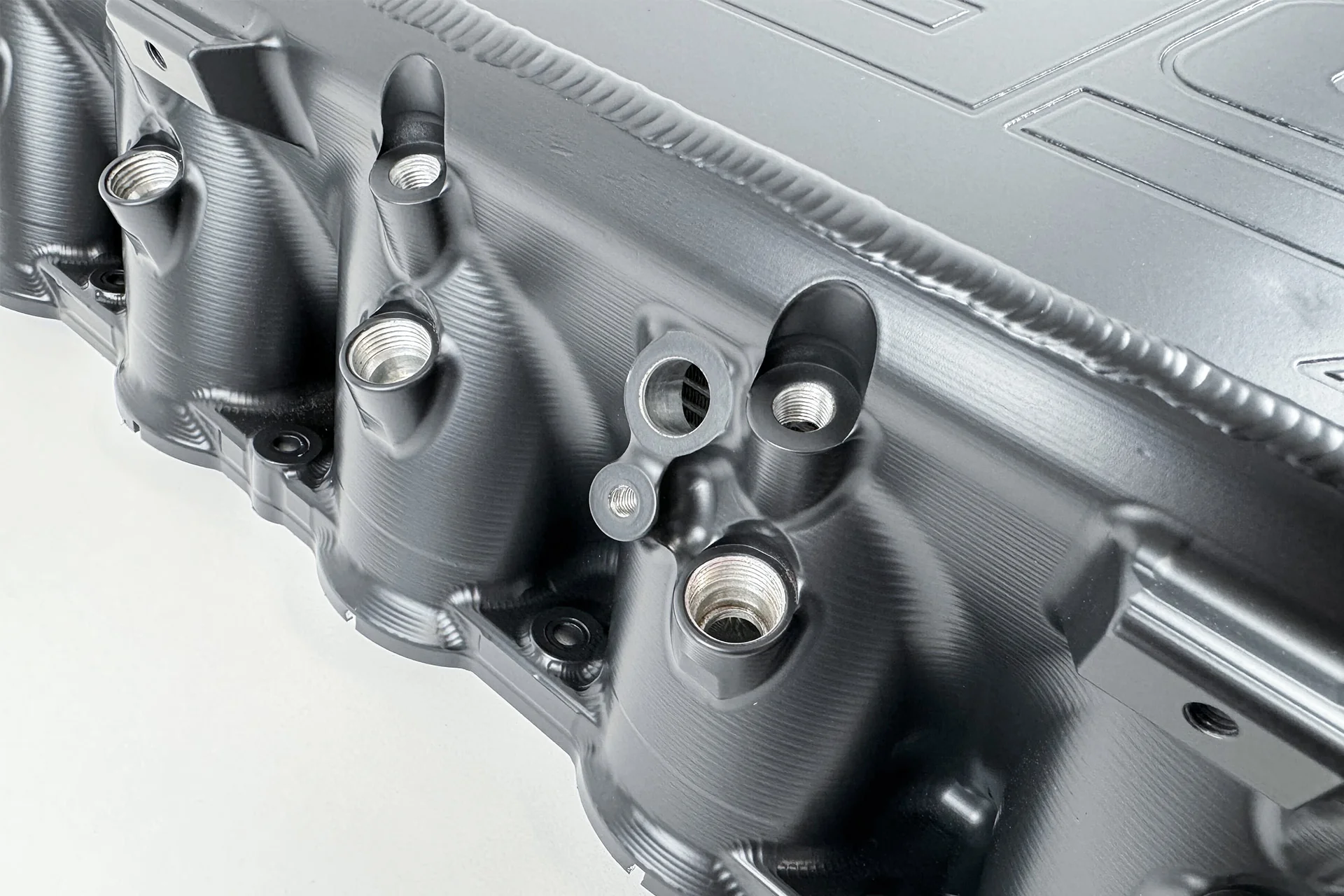

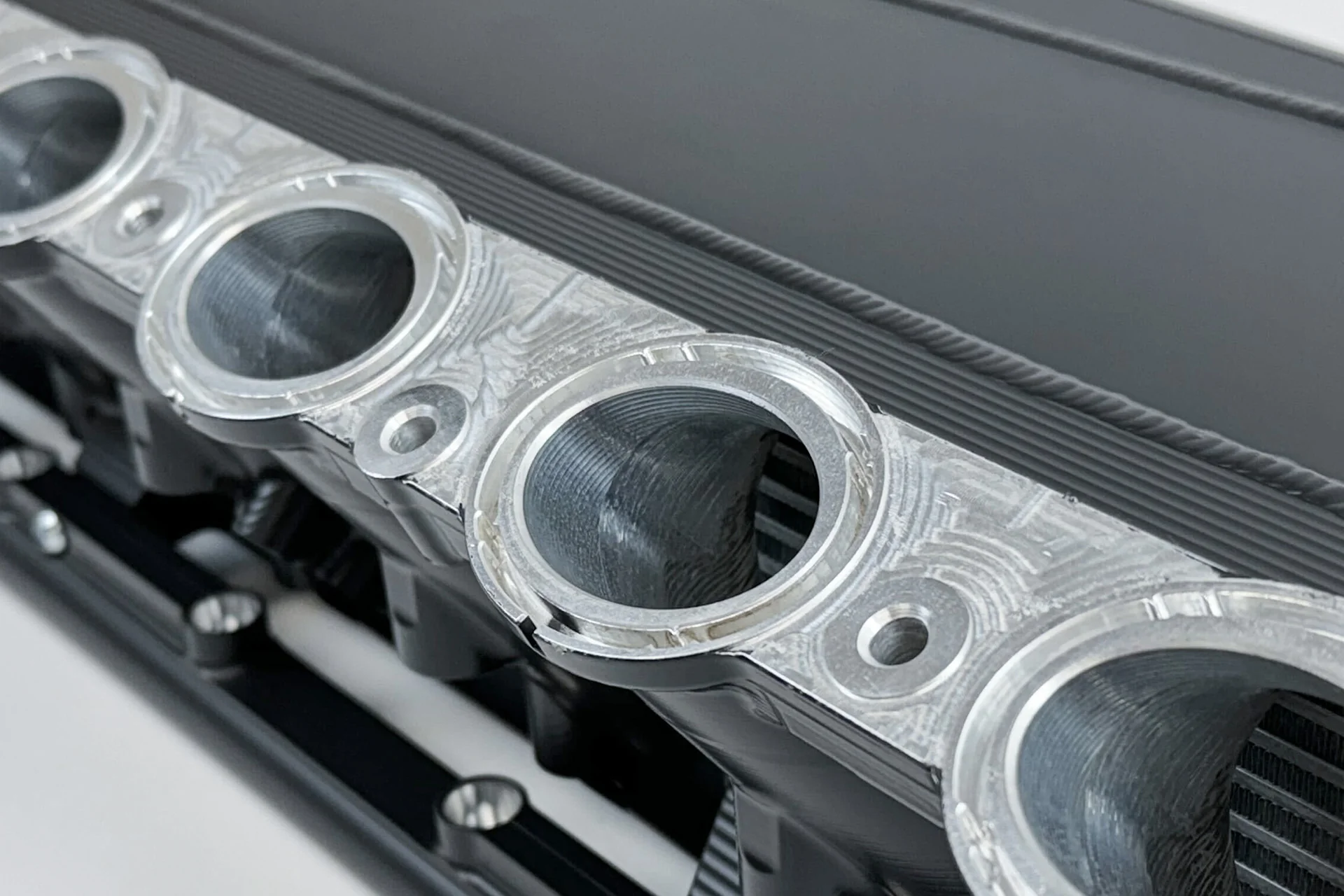

Individual 1/8" NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection-Allows for Even Spray Distribution and Control for Maximum Performance

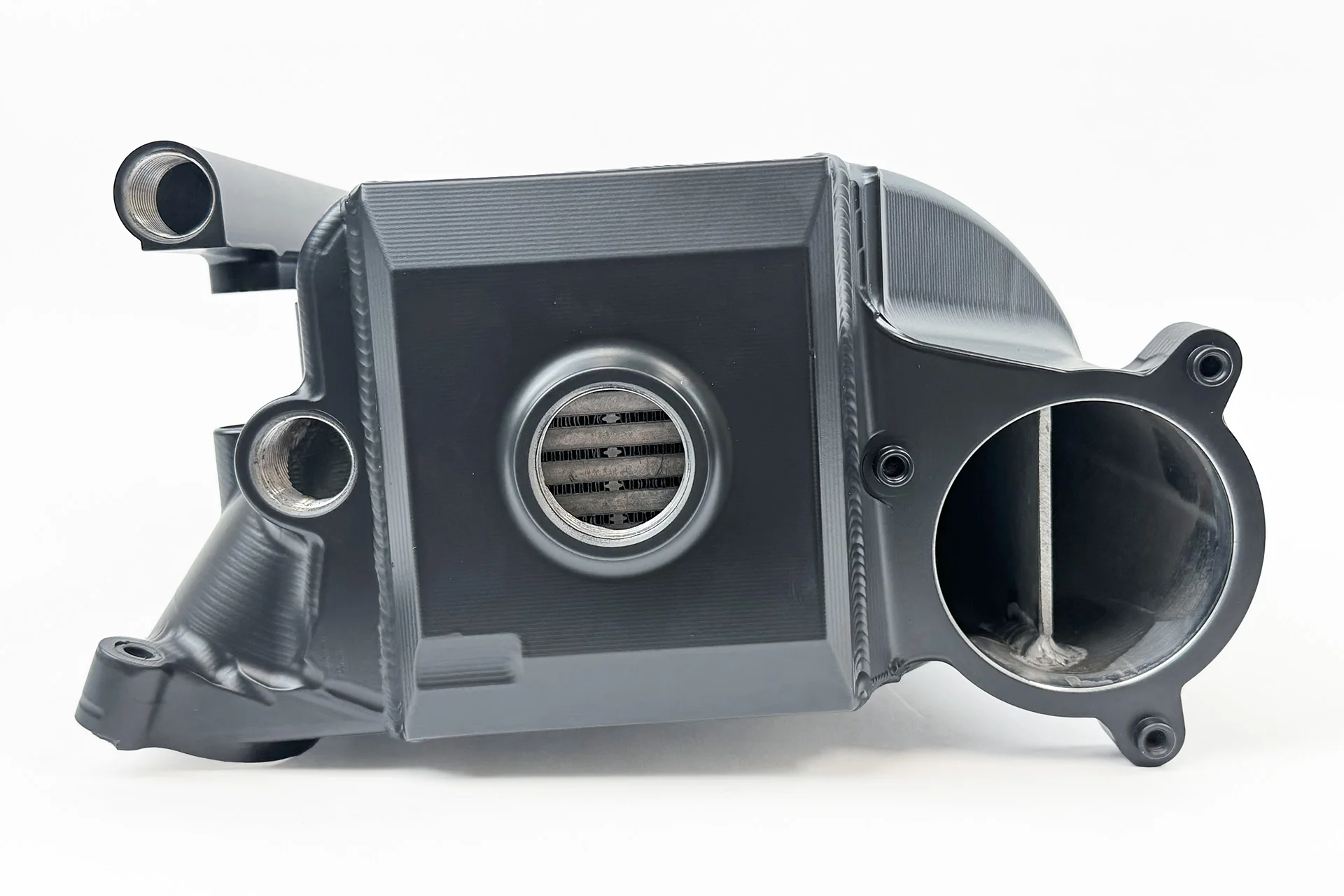

Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core

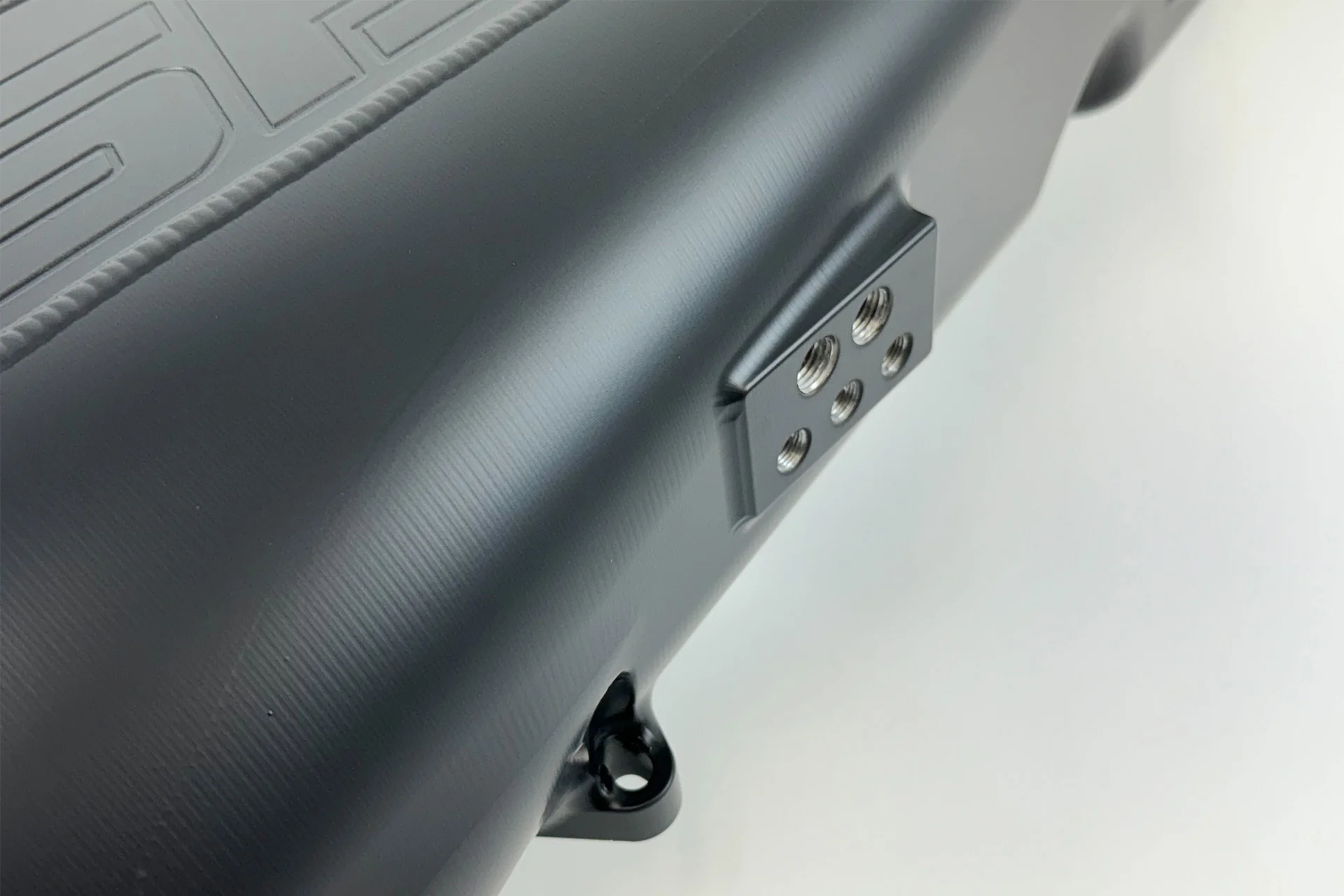

Integrated Sensor Pad with Two 1/4" and Three 1/8" NPT Ports to Measure Additional Parameters or Extra Sources of Vacuum
Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
Some modifications to install-this product is intended to be installed only by a skilled and experience technician who is familiar with the B58 engine platform
Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core-25% larger than the standard Gen-2 B58 Super Manifold (CSF#8200)-15 Rows of Water Cooling vs. CSF #8200 12 Rows and OEM 6 Rows
Package Includes:
Intercoolers
Compatible With:
2020-2025 Toyota GR Supra
2019-2023 BMW X5 X7
2020-2024 BMW M340i M340i xDrive X3
2020-2023 BMW 740i 540i xDrive 540i X6
2020-2025 BMW 840i X4 840i Gran Coupe 840i xDrive 840i xDrive Gran Coupe
2021-2024 BMW M440i xDrive M440i
2021-2022 Toyota Supra
2022-2024 BMW M440i xDrive Gran Coupe M440i Gran Coupe
2023,2025 BMW M240i M240i xDrive
2020-2022 BMW 740i xDrive 745e xDrive 745e
2024,2026 INEOS Grenadier
2025-2026 INEOS Grenadier Quartermaster
2025 BMW Z4
CSF has included a port pad into the machining of the tank on the manifold inlet side. The ports can be used to measure additional parameters or as an additional vacuum source. The Race X Manifold has two additional 1/4" NPT ports to go along with the standard three 1/8" NPT ports. Each port can be plugged with the included hardware kit if they are not used.
Features:
Package Includes:
Compatible With:
$5,995.00
