Charge-Air Cooler Manifold - Raw Billet <br> 20-25 BMW X3 X4 M2 M3 M4
Description:
Adding power always requires more fuel, so the CSF Manifold features a top feed port injection system. The intake runners have the injector bungs machined directly into them and the kit includes both the Fuel Rail and CNC Machined Block-Off Caps for non-use. In addition, the manifold also has integrated ports on each runner for Nitrous or Methanol Injection. Individual ports for each runner allows for maximum control and tuning. The included Thermal Rejection Manifold Spacer is made from KIYLEX, a revolutionary polymer that is as strong as aluminum and withstands temps up to 1100'F. The spacer insulates the manifold from conductive heat transfer from the cylinder head. This reduces manifold temps which helps lower Intake Air Temps (IATs), improves efficiency, and combats heat soak.
Features:
All necessary brackets, hardware, and instructions to install

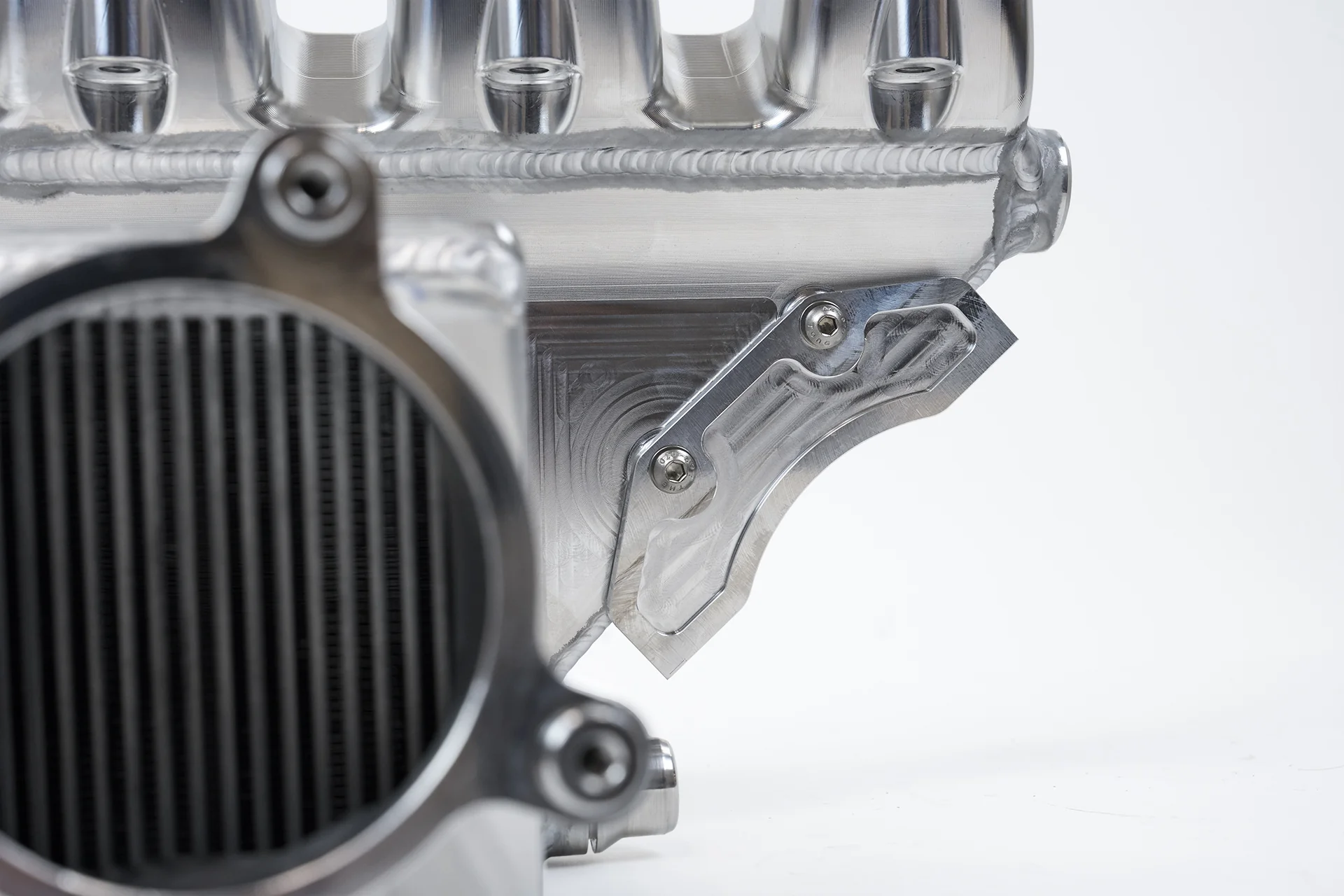

CNC front wire harness bracket for OEM fitment and slotted easy installation
High performance bar/plate intercooler core by PWR pressure tested to 120psi

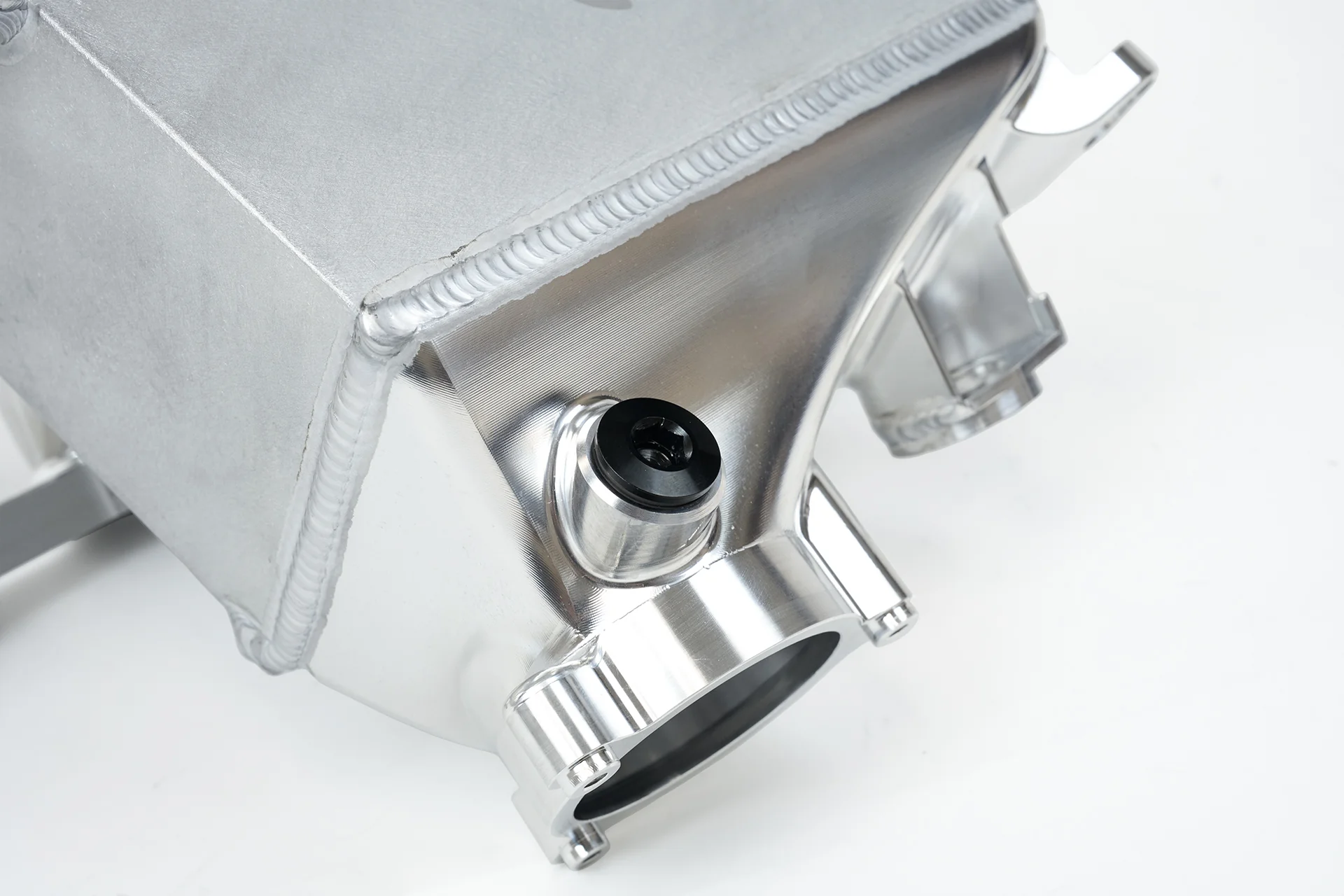

Integrated bleeder screw
Integrated coolant reservoir mounting locations on rear of manifold for perfect fitment
Integrated hose stand-offs for proper routing of EVAP hoses across manifold
Integrated nitrous ports (provided with block-off bungs if not running nitrous)
Integrated port injection with fuel rail (provided with block-off bungs if not running port injection)
KYLEX thermal spacer for the best resistance to heat soak of the manifold.
Less pressure drop compared to OEM core

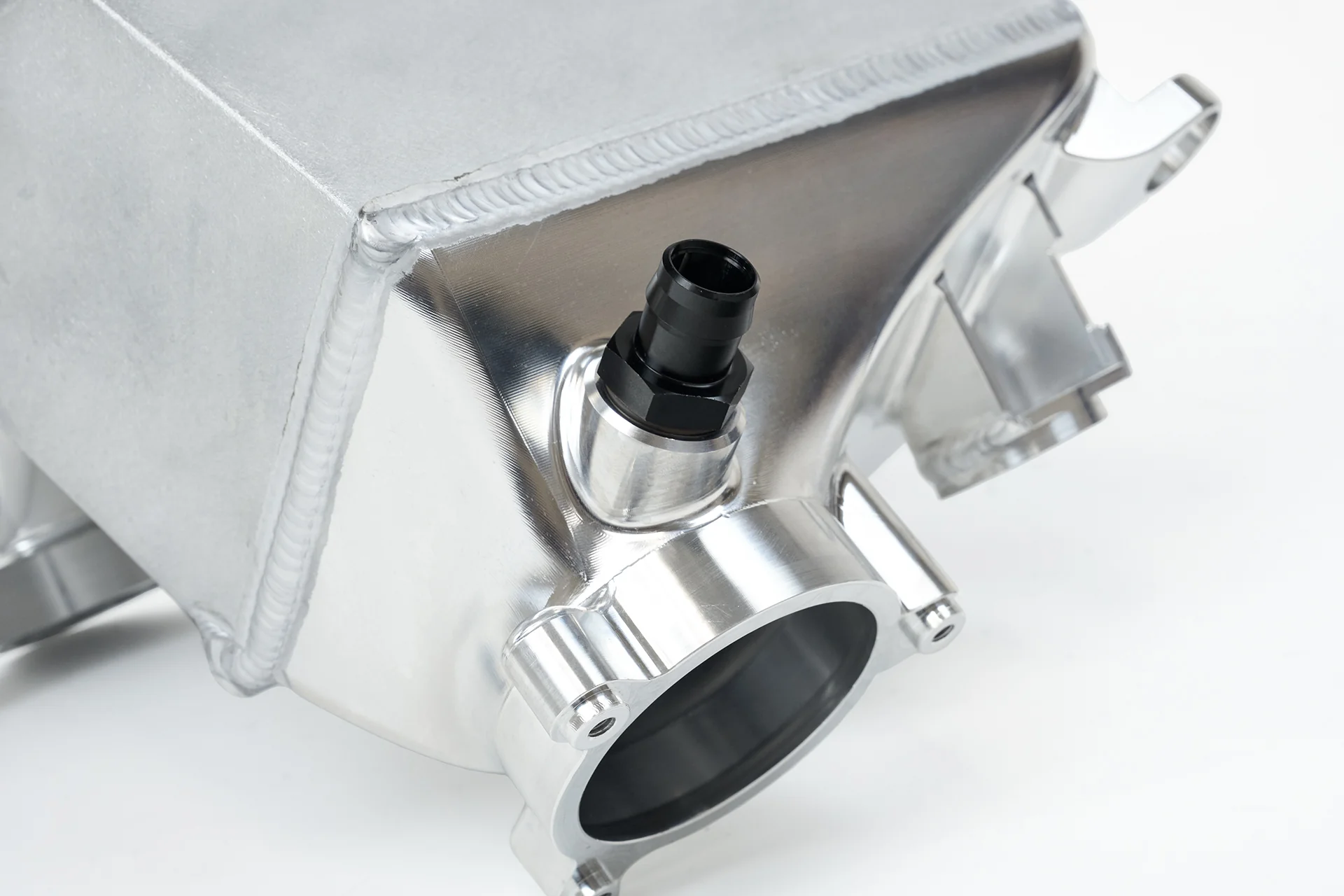

Machined coolant hose quick connects
OEM teeth on intake manifold flange for secure seating of gaskets
Perimeter pad machined into top of intake manifold for up to 3 additional sensors
Raw Billet Aluminum Finish
Rear of the intake manifold has been clearance for easy access to the engine oil filter
Reduced Intake Air Temperatures (IATs) compared to OEM
Removable machined engine cover pin for perfect fitment with engine cover

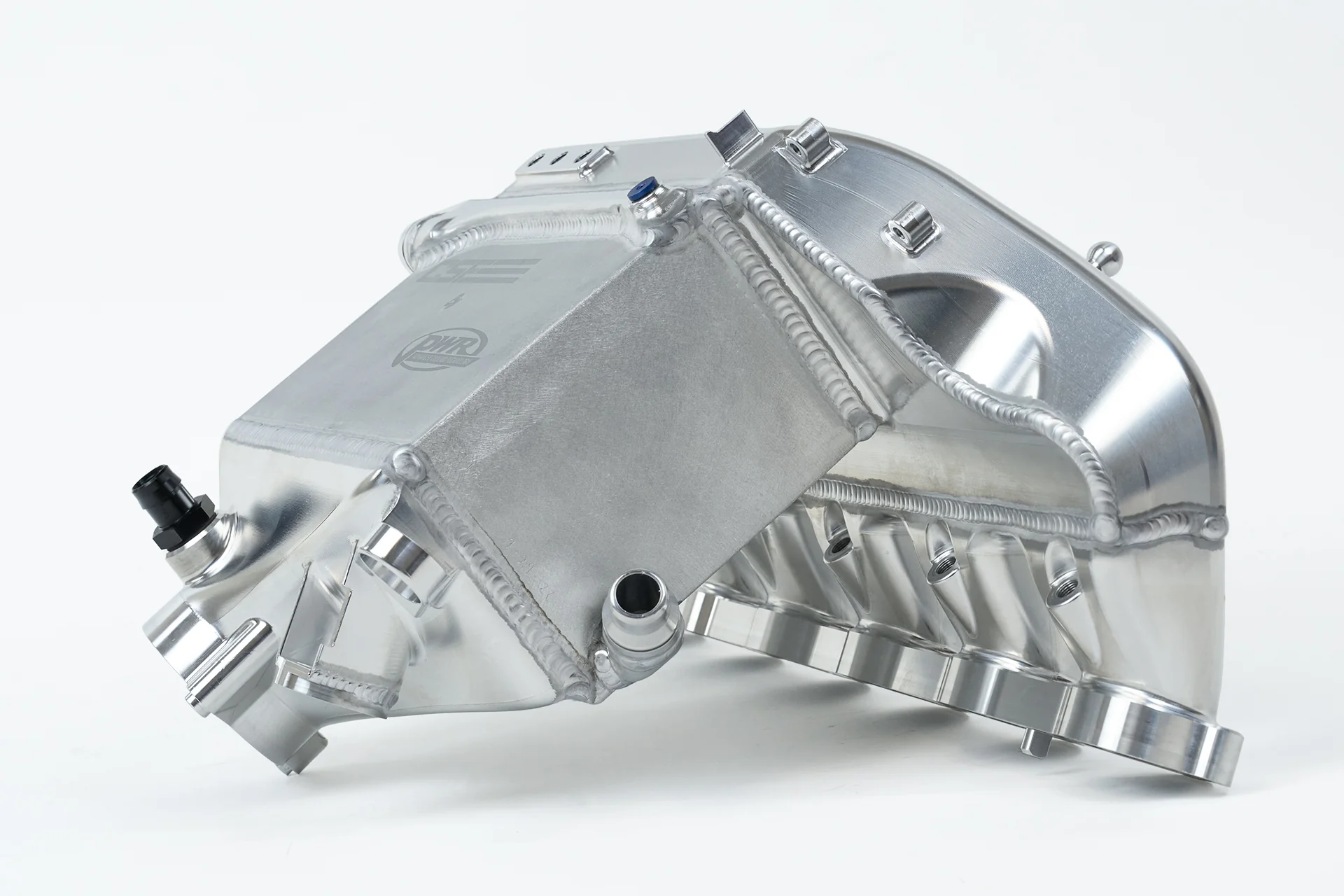

Ultra strong CNC Billet construction replaces weak plastic tanks with crimped-on gasket sealing core
Upper crank case ventilation adapter and Lower crank case ventilation adapter
Various wire harness provisions for perfect routing of wiring harness around manifold
Package Includes:
Intercoolers
Compatible With:
2020-2024 BMW X3
2020-2025 BMW X4
2021-2025 BMW M4 M3
2023-2025 BMW M2
Adding power always requires more fuel, so the CSF Manifold features a top feed port injection system. The intake runners have the injector bungs machined directly into them and the kit includes both the Fuel Rail and CNC Machined Block-Off Caps for non-use. In addition, the manifold also has integrated ports on each runner for Nitrous or Methanol Injection. Individual ports for each runner allows for maximum control and tuning. The included Thermal Rejection Manifold Spacer is made from KIYLEX, a revolutionary polymer that is as strong as aluminum and withstands temps up to 1100'F. The spacer insulates the manifold from conductive heat transfer from the cylinder head. This reduces manifold temps which helps lower Intake Air Temps (IATs), improves efficiency, and combats heat soak.
Features:
Package Includes:
Compatible With:
$6,599.00
