High-Performance All-Aluminum Radiator <br> 92-06 BMW 3-Series M3 325is

Description:

Because the S54 requires a much more robust oil cooling system than the E36's S52, CSF made special provisions to fit two different race spec oil coolers. To do this, the height of the radiator was reduced slightly so the oil coolers can fit under it in a factory style location. The radiator includes mounting brackets which can be adjusted to fit both oil coolers (CSF #8032 & #8240). CSF also includes brackets for an electric fan conversion. These brackets are designed to fit a single 16 inch SPAL Fan (not included). While it is possible to retain a clutch type fan, it is much easier to convert to an electric fan on top of the performance benefits.

Features:

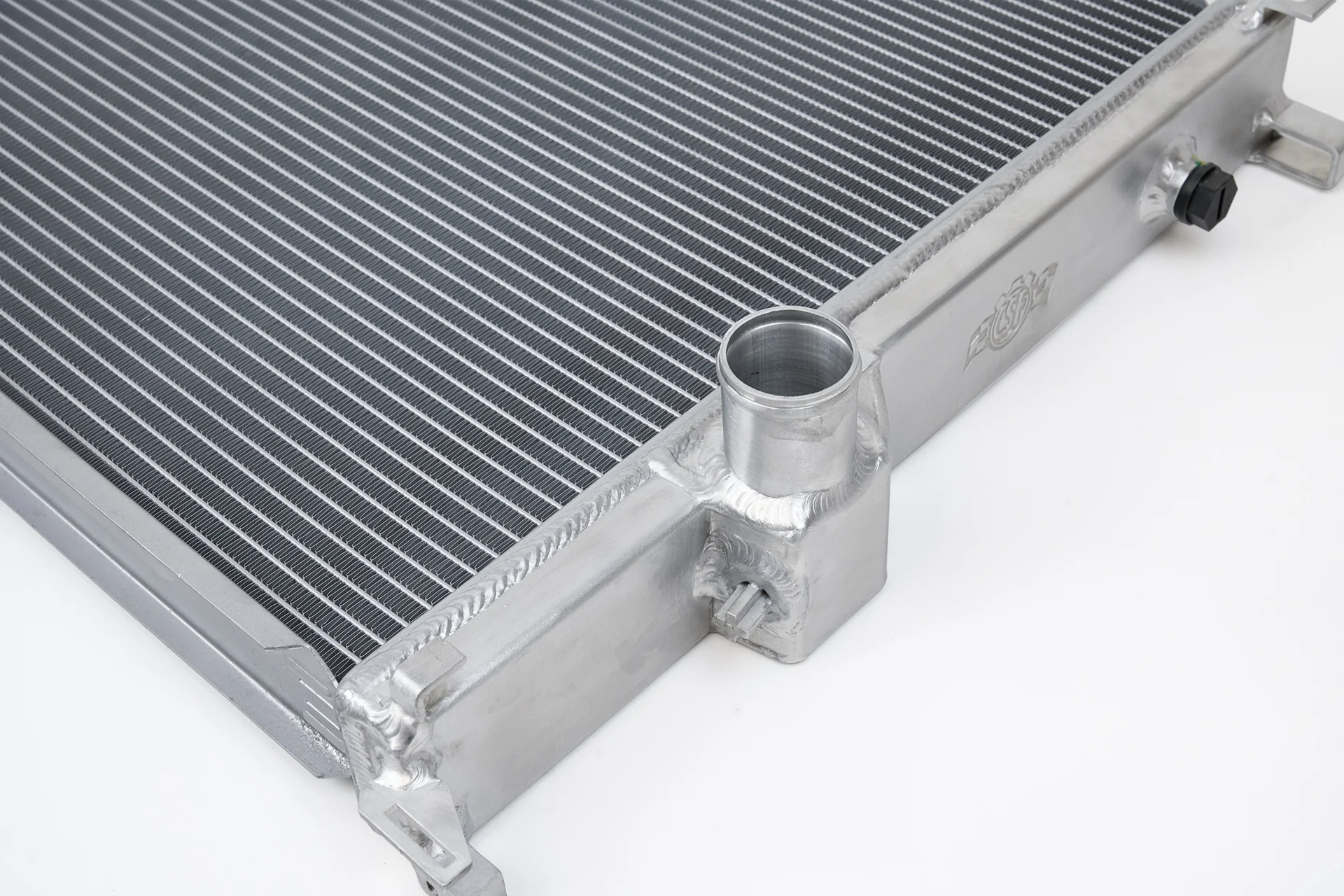

100% All Aluminum TIG-Welded Construction

2-Row-42mm Ultra-High-Performance Core

2-Year Limited Warranty

6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

All-Aluminum Race Style Drain Plug

CNC Machined Mounting Brackets, Fittings, and OEM Style Inlet/Outlet

CSF's Exclusive B-Tube Technology

Includes 2 top covers (black and satin) to cover the top plate for a clean OEM+ look

Includes fan brackets for 16 inch SPAL Fan (SPAL #30100400-not included)

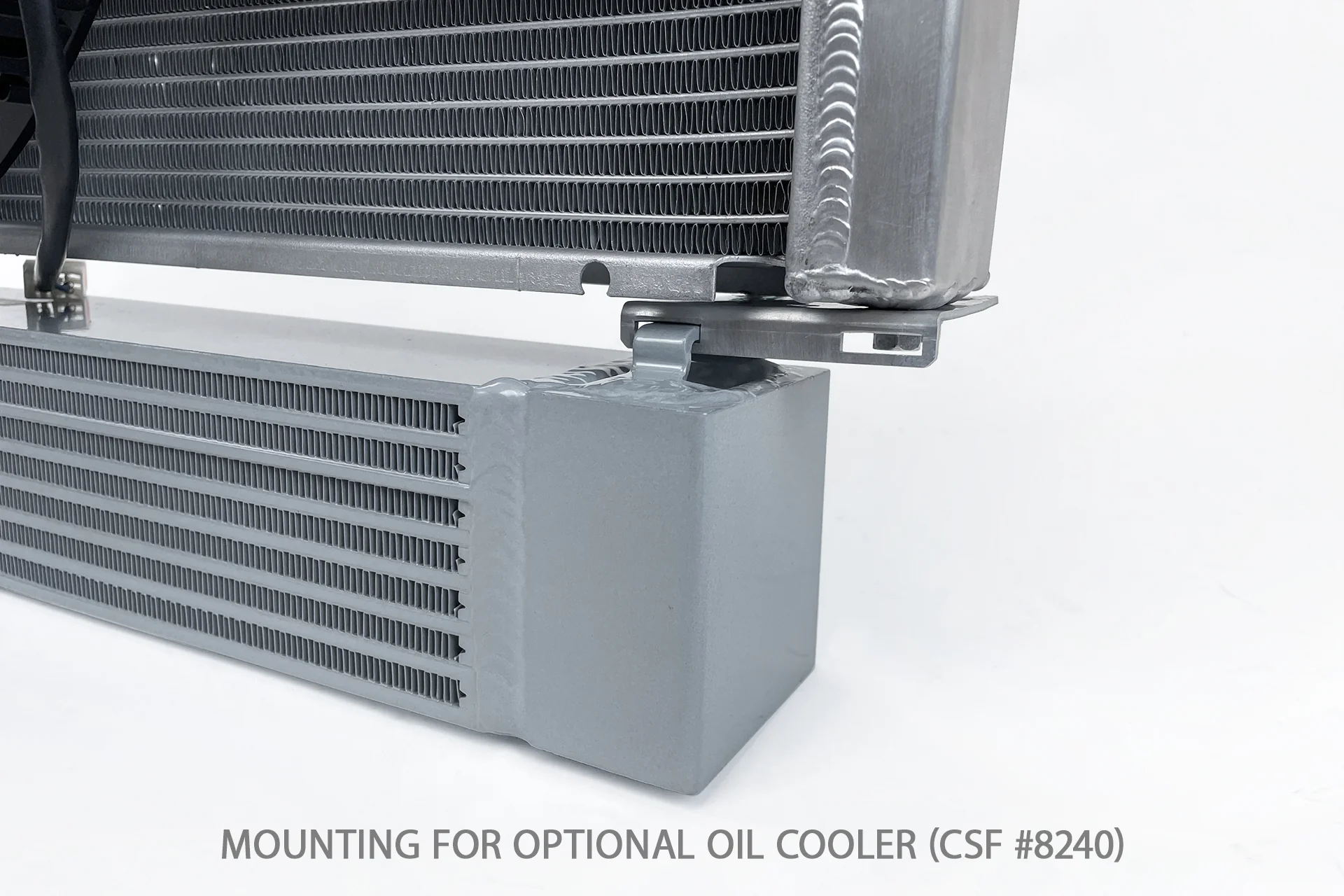

Includes Oil Cooler Mounting Brackets that fit both the CSF #8240 & CSF #8032

Individually Leak and Pressure Tested

Smooth Satin Finish

True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications

Package Includes:

Radiators

Compatible With:

1992-1999 BMW 318i 318is

1995-1999 BMW 318ti

2000 BMW 323Ci 328Ci

1998-2000 BMW 323i

1998-1999 BMW 323is

2001-2006 BMW 325Ci 330Ci

1992-1995,2001-2005 BMW 325i 320i

2001-2005 BMW 325xi 330i 330xi

1996-2000 BMW 328i

1996-1999 BMW 328is

1994-1999 BMW M3

1992-1995 BMW 325is
